RF remote control
Favorite position preset
3 adjustable running speeds10-level adjustable jog angle Dry contact
RS485 communication
Optional built-in Wi-Fi / Zigbee / Matter module
Features
Power-off stroke memory
ASK modulation ,＞100m open-space RF range
Anti-mains fluctuation & interference for precise stroke
Hall sensor for high-precision & stable limit positioning Industrial-grade surge resistance
Premium imported MCU for stable & consistent batch performance
Specification
| Product Name | Product Model | Operating Voltage | Torque Rating | Rated Speed | Rated Power | Product Size | Protection Class |

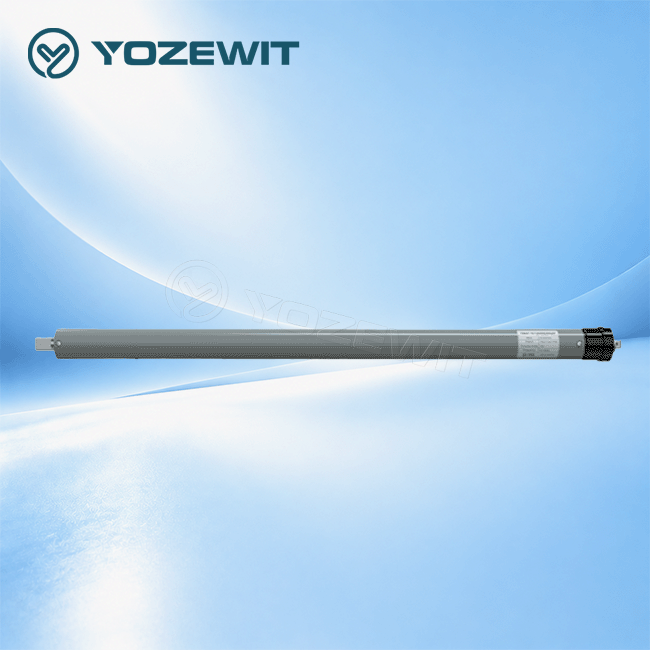

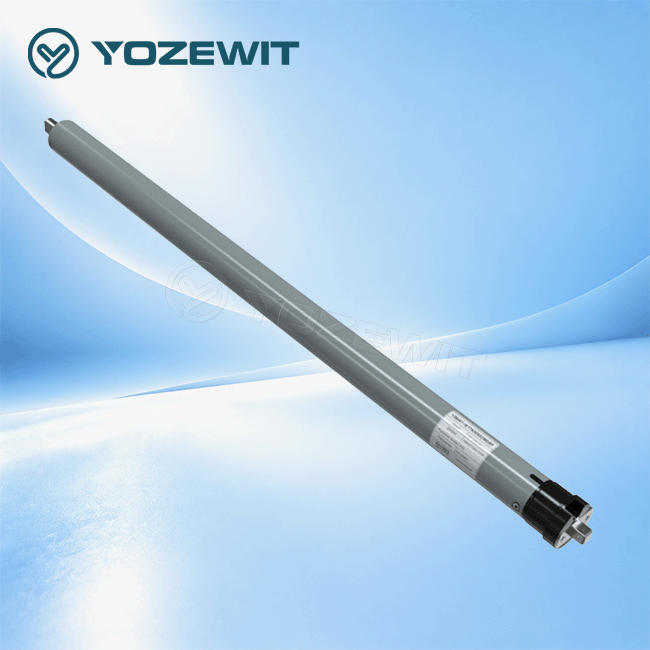

| Built-in Switching Power Supply DC Motor | YZM35T-8/17-ADER | 100~240VAC | 8Nm | 17rpm | 130W | 35*515.5 | IP44 |
Application Scenarios
Smart Control
Manufacturing & Factory
Faq
Can I customize the motor for special projects?
Yes. We provide custom track lengths, torque adjustments (for extra-heavy curtains), and protocol adaptations (Zigbee/Wi-Fi/Bluetooth) . For commercial projects like hotels, we offer group control systems to avoid travel interference.
Why does the motor stop working suddenly, and how to fix it?
Common causes:
① Overheating protection (stops after 4 mins, resumes in 10-30 mins) ;
② Low battery (beeps when pressing remote—charge immediately) ;
③ Unset travel limits (follow app prompts to calibrate) . For jammed curtains, check for track obstacles first .
④ Some motors are equipped with an obstacle-detecting stop function.
What's the warranty policy, and how to get after-sales service?
Our motors come with a 5-year warranty starting from the date of manufacture. For more after-sales details, please contact our service staff.
Is the motor certified for international markets, and does it work during power outages?
All motor have CE/FCC certifications. AC models support manual operation when power fails. Battery versions maintain basic function for 3-4 weeks after low-battery alert . Voltage can be customized for 110V regions upon request.
Do I need a gateway for smart control? Which voice assistants are supported?
It depends on the protocol: Zigbee models require a gateway for remote control, while our self-developed AI MES H protocol models work without gateways. All models support Alexa, Google Home, and Mihome via app, with voice control available when paired with smart speakers.
Specializing in indoor and outdoor shading motor systems for smarter spaces.
We offer one-stop OEM/ODM services, from design to mass production. Whether it's for curtain motors, tubular motors, or smart control systems, we support extensive customization to precisely meet the needs of building and home automation.
