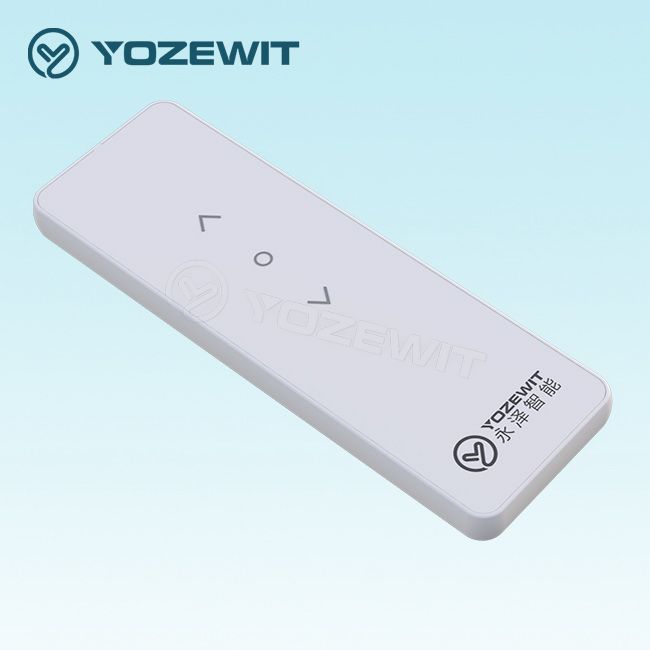

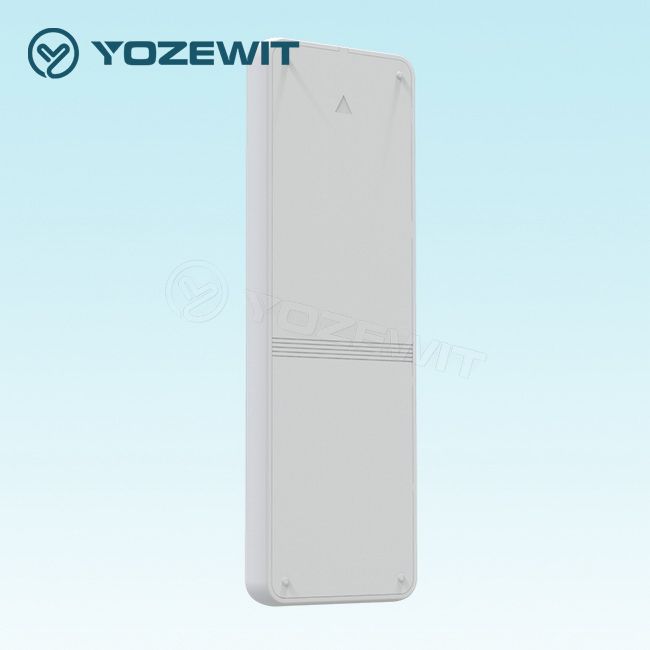

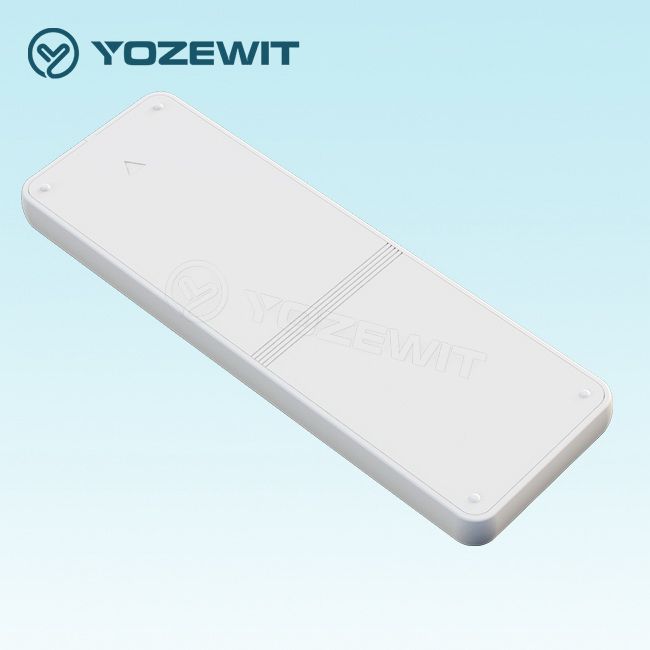

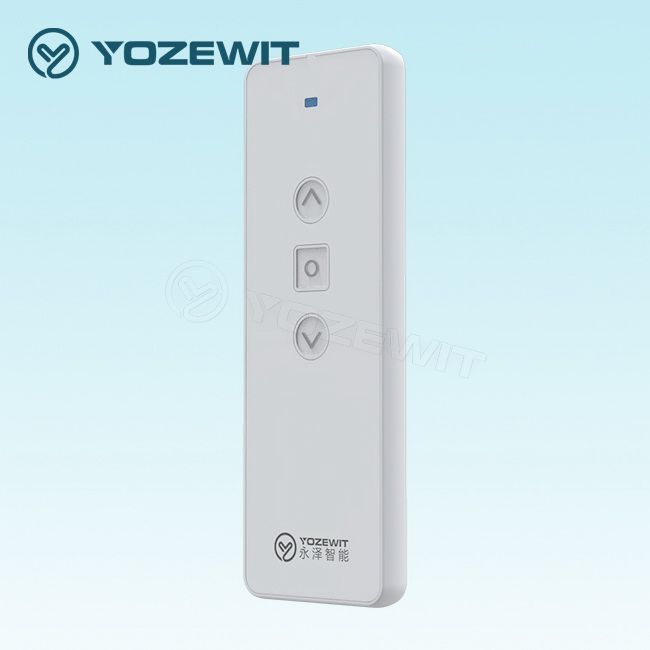

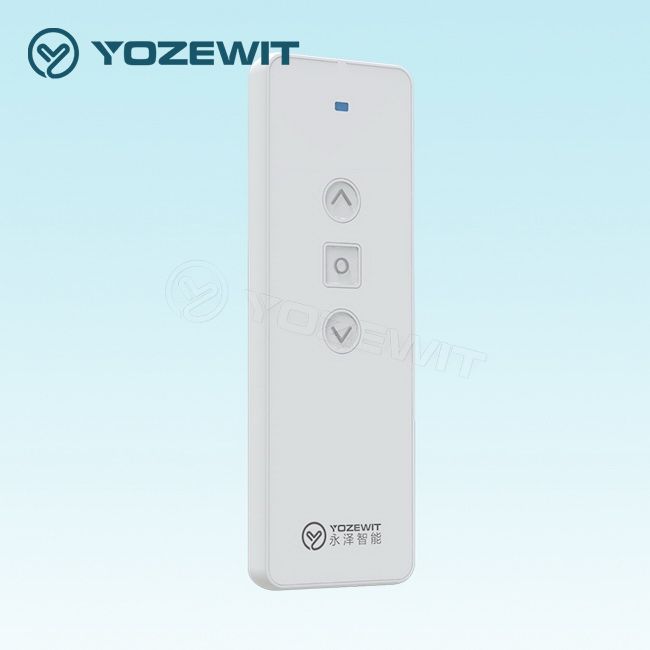

YZ11002

Multi-channel optional, up to 15 channels, single control or group control

High hardness scratch-resistant material with high quality and durability

Features

Acrylic front panel, excellent feel

Multi-channel optional, up to 15 channels, single control or group control

High hardness scratch-resistant material with high quality and durability

Ultra-low power design, ultra-long standby time

Flexible options for desktop or wall hanging, with mounting base, can be glued or screwed

Universal CR2450 battery, easy to buy and install

Specification

Product TypeProduct NameBattery TypeTransmission
channel
Remote Control
Distance
Operating
Temperature
Outline Dimensions
(L*W*H)
YZ11002Handheld Transmitter SeriesCR2450(3V)433.92MHz(ASK)Open distance 120 m (ASK)-20℃~+60℃132* 45* 9.5mm
868.35MHz(FSK)Open distance 260 m (FSK)
