Scenarios and Automation of Cross Ecological Devices
Apple Home Certification

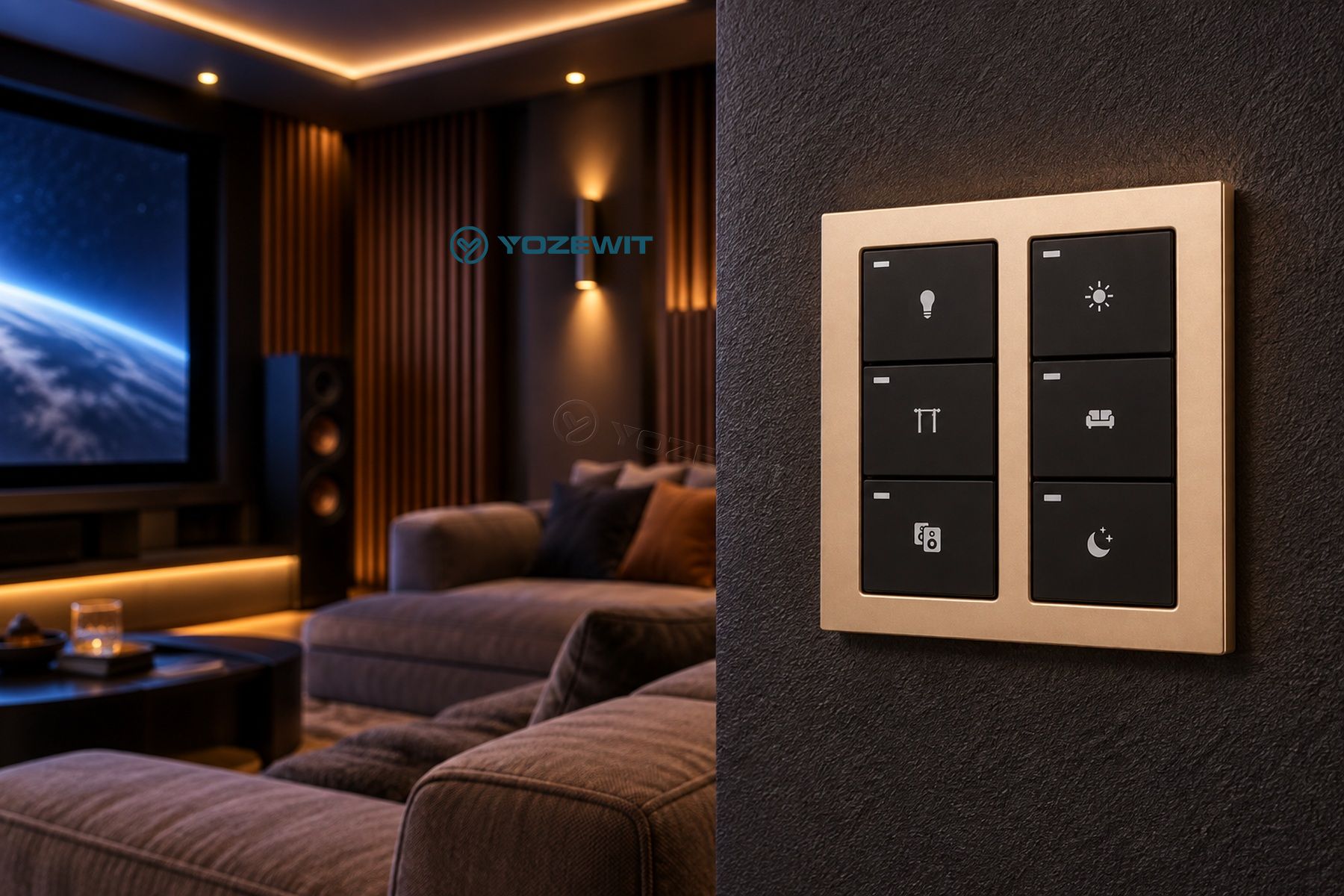

The Smart switch supports scene and automation control of ecological devices such as AppleHome and SmartThings, with rich and stable functions. Users do not need professional technical debugging and can customize scenes and automation functions, such as "home mode" and "movie watching mode".
Apple Home
Matter certification and Thread protocol
Through Matter certification, Yozewit switches are compatible with Apple, Google, and Amazon
Ecological facilities such as Samsung
Be prepared to ensure seamless linkage of cross brand devices
Features
Matter over Thread protocol: Built on the Matter standard and Thread wireless protocol, the device requires no additional dedicated gateway or hub. It connects directly to major platforms such as Apple Home, Google Home, Amazon Alexa, and SmartThings.
Decentralized architecture: With no central hub or gateway dependency, the system is more stable—a single device failure won't affect overall operation.
Local control, no cloud dependency: All control commands and data are transmitted locally via peer-to-peer encryption, never passing through the manufacturer's cloud servers—offering stronger privacy.
No third-party app required: Devices can be added, configured, and OTA-updated directly through the connected Matter platform (e.g., Apple Home app).
Multiple button options: Available in versions ranging from 1 to 6 buttons, with each button supporting single press, double press, long press, and other trigger methods.
Decoupled relays and scenes: On wired versions, buttons control relays by default (e.g., turning lights on/off), but this binding can be broken or restored via specific button combinations. Once decoupled, relays can still be controlled through automations or the Matter app, while buttons can function entirely as scene switches.
Powerful scene functionality: Some models (such as the 6-button panel) support up to 18 scene functions, meeting complex automation needs.
Proximity sensing: Some models feature built-in radar or proximity sensors that automatically illuminate button backlights when someone approaches, and can also serve as automation triggers (e.g., lights on when someone arrives).
Wide voltage & aesthetics: Supports AC 110V–240V wide voltage input; panels are made of glass and available in multiple colors including white, gold
Specification
| Product Name | Item No | Maximum Load | Wireless Type | Rated Voltage |
| Smart Switch | ≤300W/Gang | Matter Over Thread | 110~240VAC 50/60Hz |

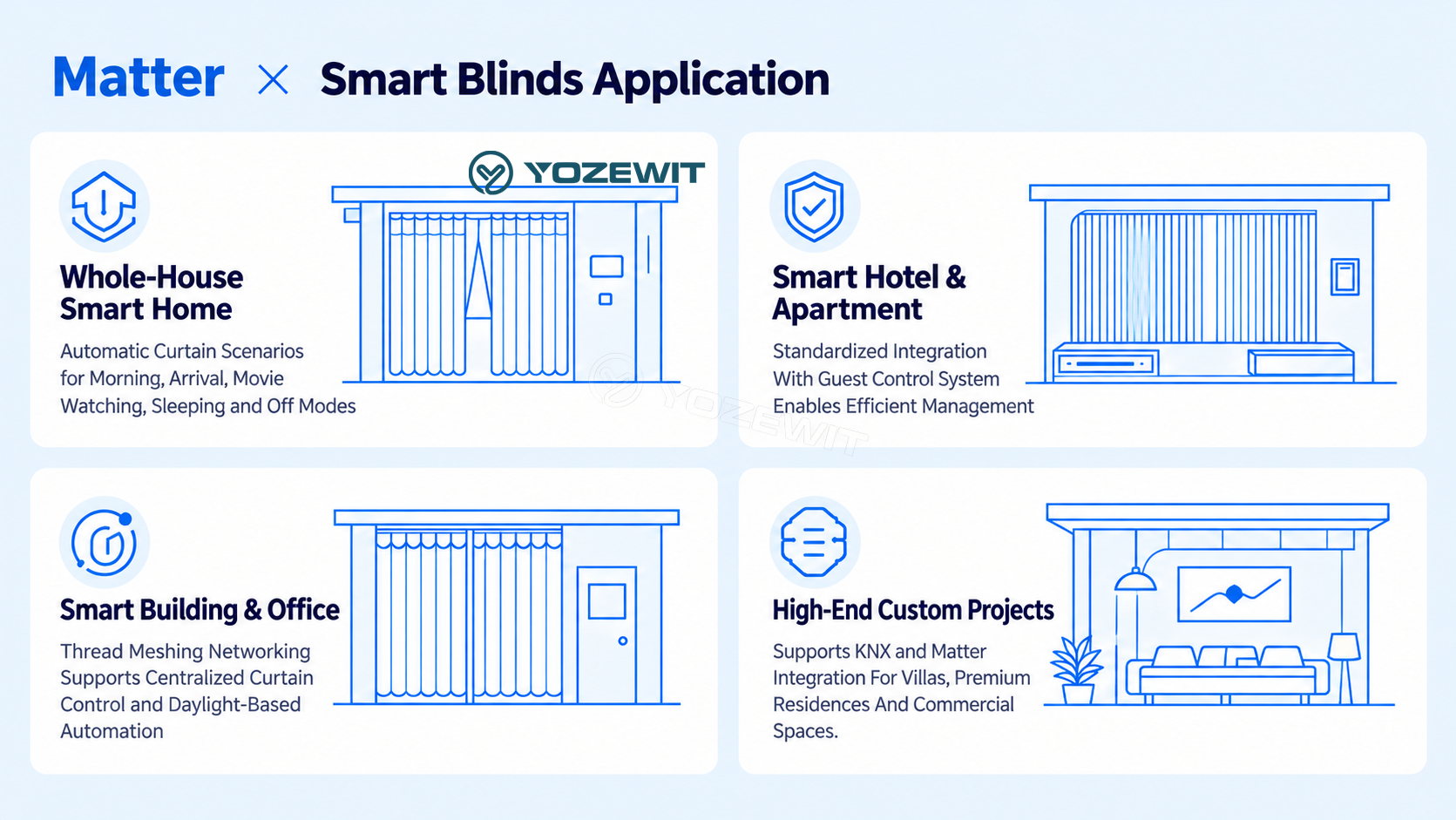

Application Scenarios

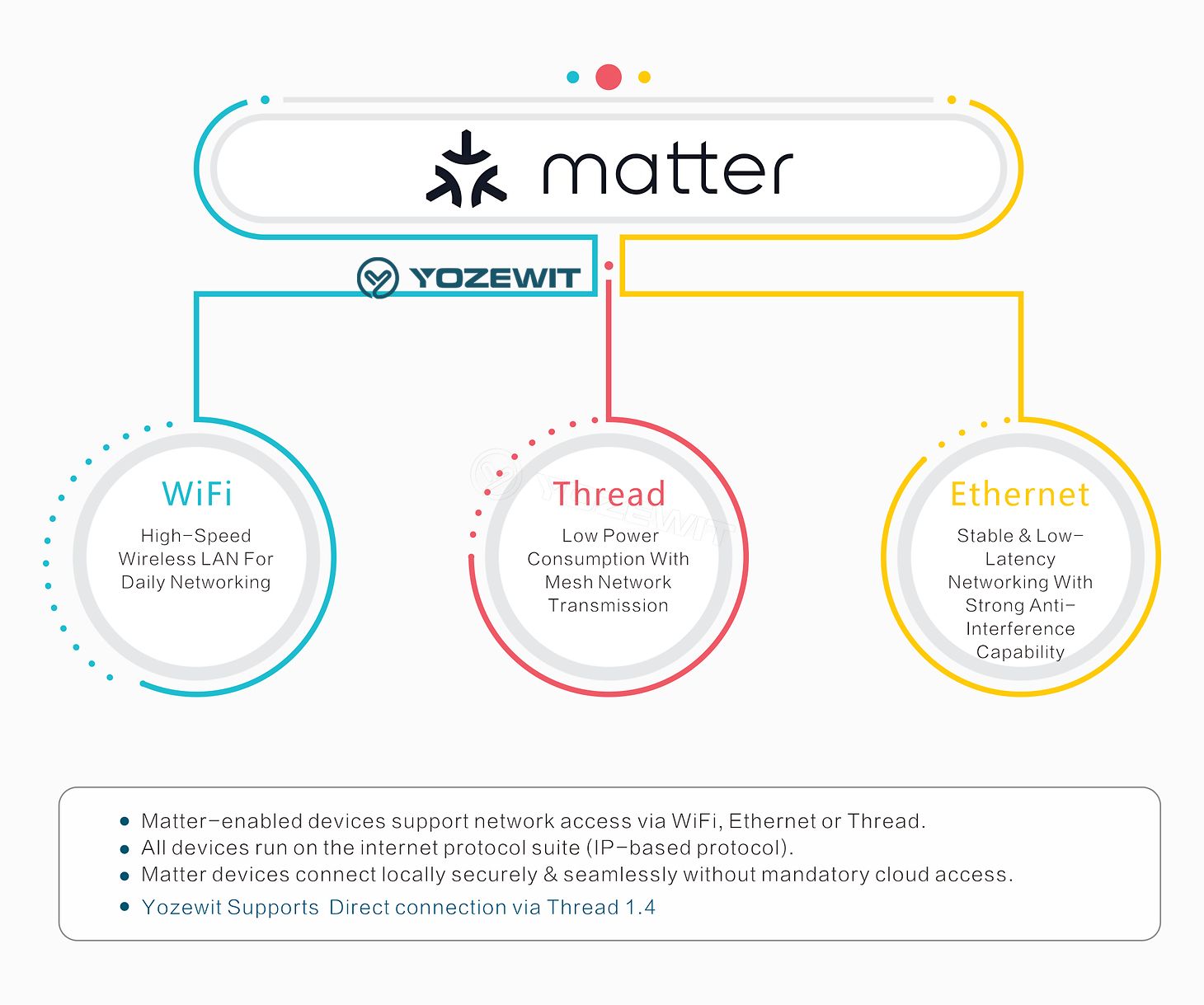

About Matter
Faq
What are the requirements for curtain box size and track compatibility?
For tubular motors, the curtain box width must exceed 13cm. Our motors are compatible with most standard aluminum tracks (single/dual rails) and support curtain widths from 0.7m to 2.2m, with maximum height 4m for roller blinds. Note that inner-opening windows are not recommended for installation.
Do I need a gateway for smart control? Which voice assistants are supported?
It depends on the protocol: Zigbee models require a gateway for remote control, while our self-developed AI MES H protocol models work without gateways. All models support Alexa, Google Home, and Mihome via app, with voice control available when paired with smart speakers.
Do your curtain motors support the Matter protocol? If yes, what advantages does this bring to my smart home setup?
Yes, all our motor models launched after 2025 fully support the Matter 1.4 protocol.
The Matter protocol brings three key benefits for your smart home:
1. Cross-ecosystem compatibility: You can control the curtain motor seamlessly across major smart home platforms (Apple Home, Google Home, Amazon Alexa, Samsung SmartThings) without switching between different apps. For example, you can set a "Morning Routine" in Apple Home that opens the curtains via our motor while turning on your Google Nest lights.
2. Simpler pairing: No need for brand-specific gateways (if you already have a Matter-enabled hub like Apple HomePod mini, Google Nest Hub, or Amazon Echo 4th Gen). Just scan the Matter QR code on the motor or use "Nearby Devices" in your preferred smart app to connect in 30 seconds.
3. Stable & low-latency control: Matter uses local network communication (instead of relying solely on cloud servers), so curtain opening/closing commands respond in ≤0.5 seconds—even if your internet connection is unstable.
How long does the battery last, and what charging specifications are required?
Wireless lithium battery models last 3-6 months with 1-2 daily uses. Use a 5V/2A (or higher) charger for 4-6 hours to reach 60-70% activation capacity. Solar charging accessories are optional for "Unlimited Battery Life" in well-lit areas.
What's the maximum load capacity, and can it fit heavy curtains?
Our curtain motors support up to 80KG load with 1.2N・m torque , suitable for thick blackout curtains. Tubular motors handle 30-50KG and work with blinds,and sheer curtains—with dimming control for adjustable light . Reverse direction via app or remote if control is inverted.
Why does the motor stop working suddenly, and how to fix it?
Common causes:
① Overheating protection (stops after 4 mins, resumes in 10-30 mins) ;
② Low battery (beeps when pressing remote—charge immediately) ;
③ Unset travel limits (follow app prompts to calibrate) . For jammed curtains, check for track obstacles first .
④ Some motors are equipped with an obstacle-detecting stop function.
What's the warranty policy, and how to get after-sales service?
Our motors come with a 5-year warranty starting from the date of manufacture. For more after-sales details, please contact our service staff.
Can I customize the motor for special projects?
Yes. We provide custom track lengths, torque adjustments (for extra-heavy curtains), and protocol adaptations (Zigbee/Wi-Fi/Bluetooth) . For commercial projects like hotels, we offer group control systems to avoid travel interference.
Is the motor certified for international markets, and does it work during power outages?
All motor have CE/FCC certifications. AC models support manual operation when power fails. Battery versions maintain basic function for 3-4 weeks after low-battery alert . Voltage can be customized for 110V regions upon request.
Specializing in indoor and outdoor shading motor systems for smarter spaces.
We offer one-stop OEM/ODM services, from design to mass production. Whether it's for curtain motors, tubular motors, or smart control systems, we support extensive customization to precisely meet the needs of building and home automation.
