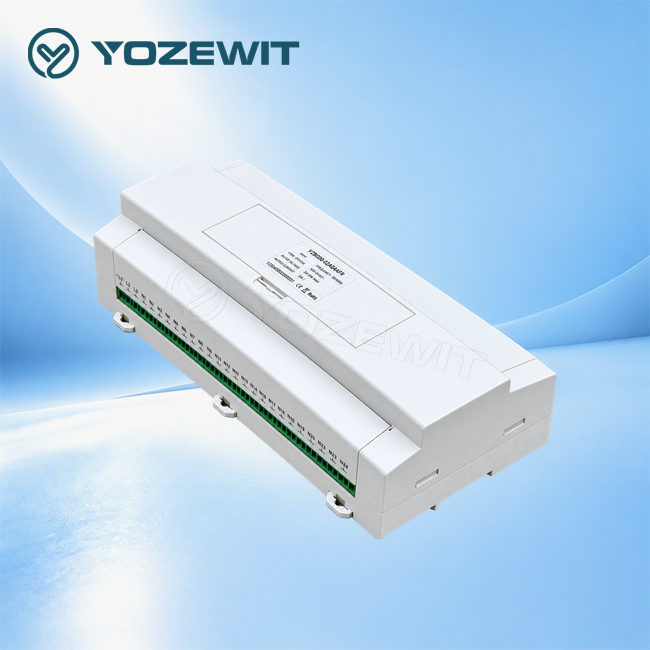

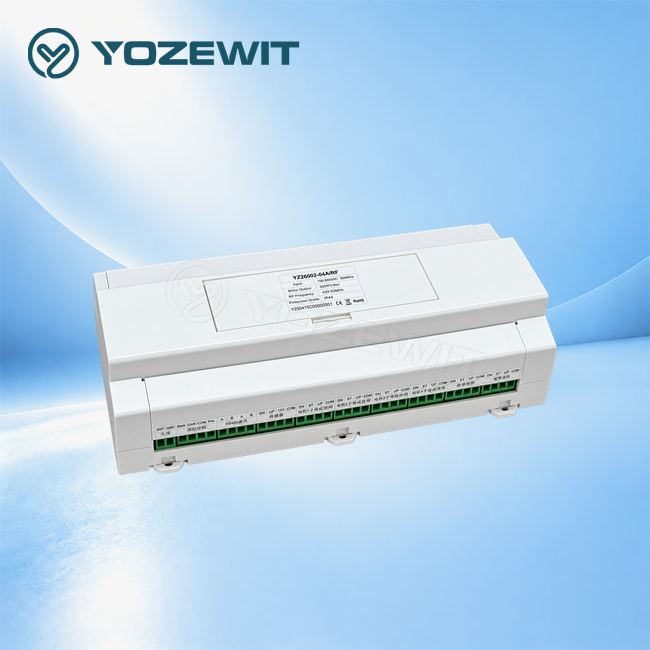

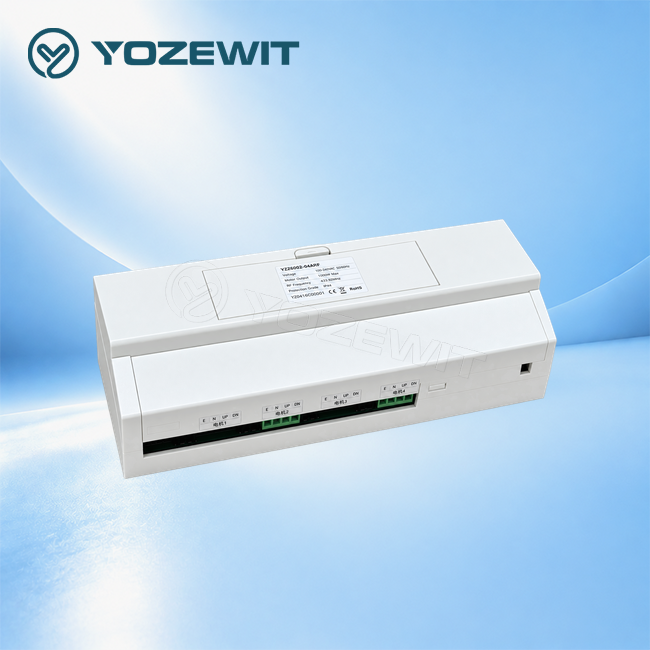

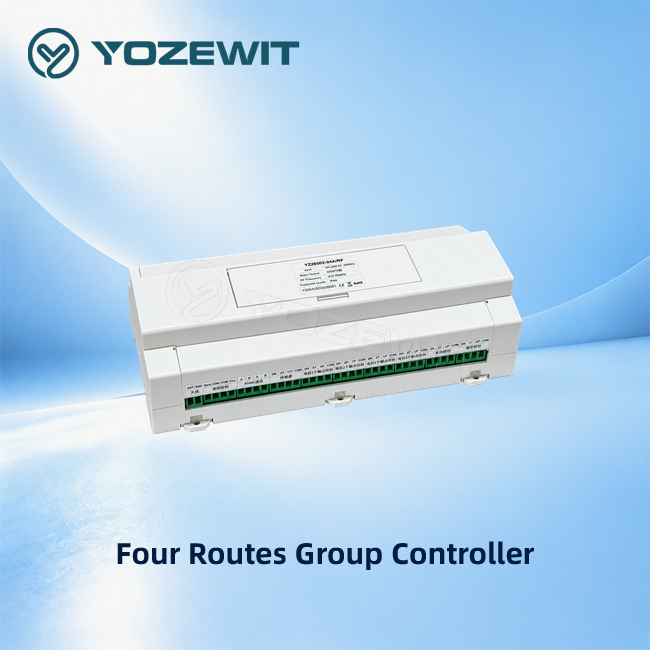

YZ26002-04A/RF 4-channel Motor Group Controller centrally controls up to four motors. It supports RF wireless remote (＞80 m), dry contact, and RS485/MODBUS-RTU control, with percentage control and feedback, automatic limit recognition, jog/linkage modes (10 adjustable jog angles), and reversing. Housed in 94V0 fire-resistant plastic with power and operation indicators, it is easy to install, safe, and reliable for industrial and commercial motor group control
Features
1. Power Supply: 100-240VAC, 50/60Hz
2. RF wireless remote control, built-in RF antenna, linear remote control distance ＞ 80 meters
3. Percentage control and feedback function, automatic recognition of limit points
4. External dry contact control function, can be connected to local control switch panel or dry contact group control, with an effective distance greater than 100 meters
5. External RS485 function, supporting MODBUSRTU protocol, with adjustable baud rate
6. Supports two working modes: jog/linkage, with 10 adjustable jog angles' setting. The default jog angle is the 4th level and the minimum angle is level 1
7. Support reversing function by switching the direction of motor operation through panel buttons or remote control
8. The shell is made of fire-resistant plastic material, with a fire rating of 94V0
9. Power indication and operation prompts, intuitive and convenient
10. Simple and stylish exterior design, easy to install, simple and atmospheric
11. Industrial design, easy for installation and usage, safe and reliable
Specification
| Product Name | Item No | Power Supply | Output Power | RF Frequency | RF Accuracy | RF Communication Protocol | Control Method | Dry Contact Voltage | Dry Contact Distance | RS485 Protocool | RS485 Communication Distance | Waterproof |
| 4-Routes Motor Group Controller | YZ26001-04A/RF | 100~220VAC/; 50/60Hz | ＜500W * 4 Motors | 433.92MHz (ASK) | -110dbm | ULK | Panel/Remote/Dry Contact/Sensor/RS485/Fire Alarm Signal | 12VDC | ＞100m | Modbus RTU | ＜200m | IP44 |
Faq
What are the requirements for curtain box size and track compatibility?
For tubular motors, the curtain box width must exceed 13cm. Our motors are compatible with most standard aluminum tracks (single/dual rails) and support curtain widths from 0.7m to 2.2m, with maximum height 4m for roller blinds. Note that inner-opening windows are not recommended for installation.
Do I need a gateway for smart control? Which voice assistants are supported?
It depends on the protocol: Zigbee models require a gateway for remote control, while our self-developed AI MES H protocol models work without gateways. All models support Alexa, Google Home, and Mihome via app, with voice control available when paired with smart speakers.
Do your curtain motors support the Matter protocol? If yes, what advantages does this bring to my smart home setup?
Yes, all our motor models launched after 2025 fully support the Matter 1.4 protocol.
The Matter protocol brings three key benefits for your smart home:
1. Cross-ecosystem compatibility: You can control the curtain motor seamlessly across major smart home platforms (Apple Home, Google Home, Amazon Alexa, Samsung SmartThings) without switching between different apps. For example, you can set a "Morning Routine" in Apple Home that opens the curtains via our motor while turning on your Google Nest lights.
2. Simpler pairing: No need for brand-specific gateways (if you already have a Matter-enabled hub like Apple HomePod mini, Google Nest Hub, or Amazon Echo 4th Gen). Just scan the Matter QR code on the motor or use "Nearby Devices" in your preferred smart app to connect in 30 seconds.
3. Stable & low-latency control: Matter uses local network communication (instead of relying solely on cloud servers), so curtain opening/closing commands respond in ≤0.5 seconds—even if your internet connection is unstable.
How long does the battery last, and what charging specifications are required?
Wireless lithium battery models last 3-6 months with 1-2 daily uses. Use a 5V/2A (or higher) charger for 4-6 hours to reach 60-70% activation capacity. Solar charging accessories are optional for "Unlimited Battery Life" in well-lit areas.
What's the maximum load capacity, and can it fit heavy curtains?
Our curtain motors support up to 80KG load with 1.2N・m torque , suitable for thick blackout curtains. Tubular motors handle 30-50KG and work with blinds,and sheer curtains—with dimming control for adjustable light . Reverse direction via app or remote if control is inverted.
Why does the motor stop working suddenly, and how to fix it?
Common causes:
① Overheating protection (stops after 4 mins, resumes in 10-30 mins) ;
② Low battery (beeps when pressing remote—charge immediately) ;
③ Unset travel limits (follow app prompts to calibrate) . For jammed curtains, check for track obstacles first .
④ Some motors are equipped with an obstacle-detecting stop function.
What's the warranty policy, and how to get after-sales service?
Our motors come with a 5-year warranty starting from the date of manufacture. For more after-sales details, please contact our service staff.
Can I customize the motor for special projects?
Yes. We provide custom track lengths, torque adjustments (for extra-heavy curtains), and protocol adaptations (Zigbee/Wi-Fi/Bluetooth) . For commercial projects like hotels, we offer group control systems to avoid travel interference.
Is the motor certified for international markets, and does it work during power outages?
All motor have CE/FCC certifications. AC models support manual operation when power fails. Battery versions maintain basic function for 3-4 weeks after low-battery alert . Voltage can be customized for 110V regions upon request.
