01
Pull start & remote control available
02
Custom stroke: auto stroke setting by obstacle detection + remote fine-tuning
03
Anti-grid interference design for precise positioning
04
Custom intermediate stop at any position
Exploded view

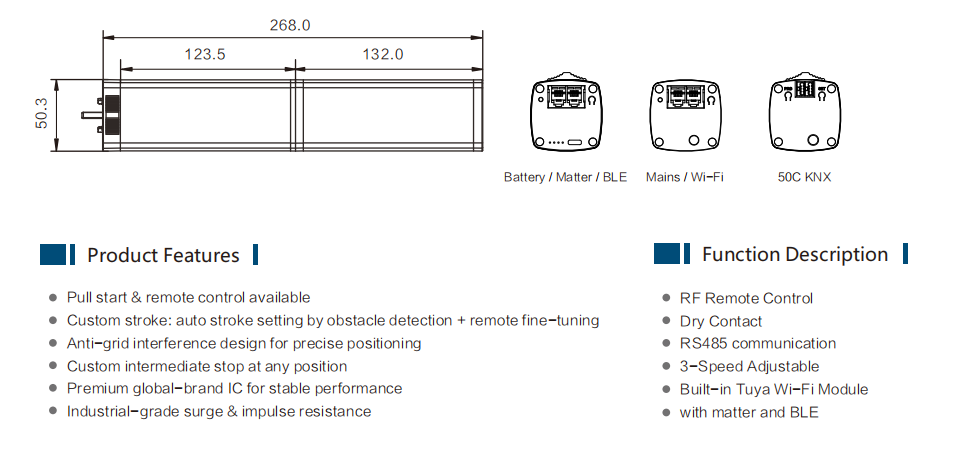

External Dimensions
Technical Specifications
| Product Name | Model No. | OperatingVoltage | RatedTorque | RatedSpeed | RatedPower | RxFrequency | Dimension | IPRating |
| Curtain Motor(AC Power Supply) | YZM50C-1.2/100-ADERWF | 100-240VAC50/60Hz | 1.2Nm | 100rpm | 36W | 433.92MHz | 55.4*50.5*282.6mm | IP44 |
| Curtain Motor(Li-ion Battery Supply) | YZM50C-1.2/100-IER/BLE | 14.8VDC | 1.2Nm | 100rpm | 22.2W | 433.92MHz | 55.4*50.5*282.6mm | IP44 |
