Mute design, wide voltage power supply, obstacle rebound, push rod motor, 150W controller, customizable stroke, light strip, 150W windproof roller shutter motor, louver blades, column RGB light strip, windproof roller shutter
Product Features
01
100-240VAC, 50/60Hz wide voltage input, globally universal voltage with automatic frequency adaptation
02
Operation prompt LED light, enhanced human-computer interaction
03
Adopts international first-line brand chips, stable and reliable performance
04
FSK modulation, open receiving distance >200 meters

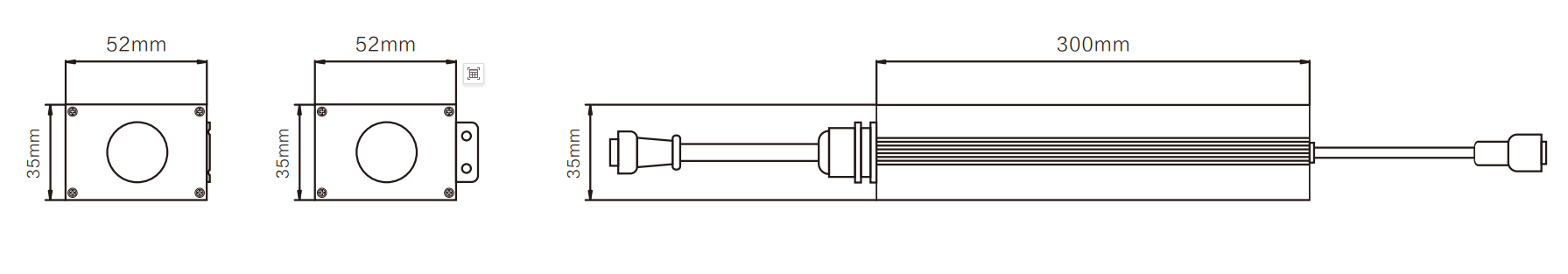

External dimensions
Exploded view

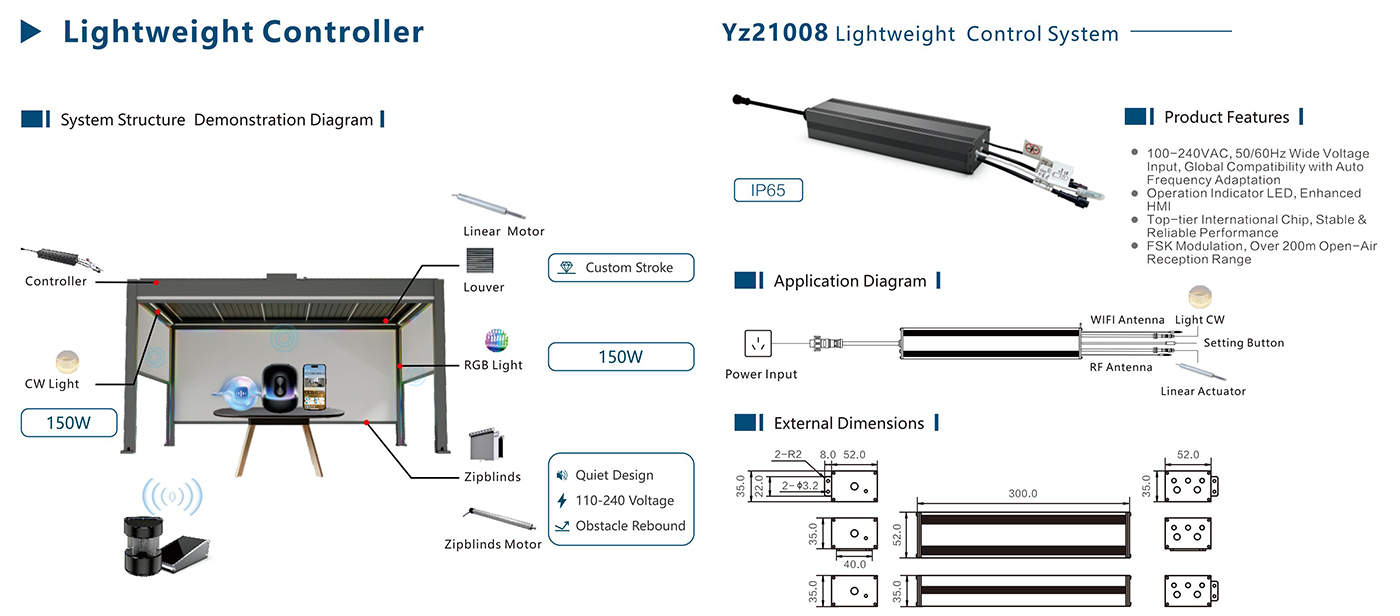

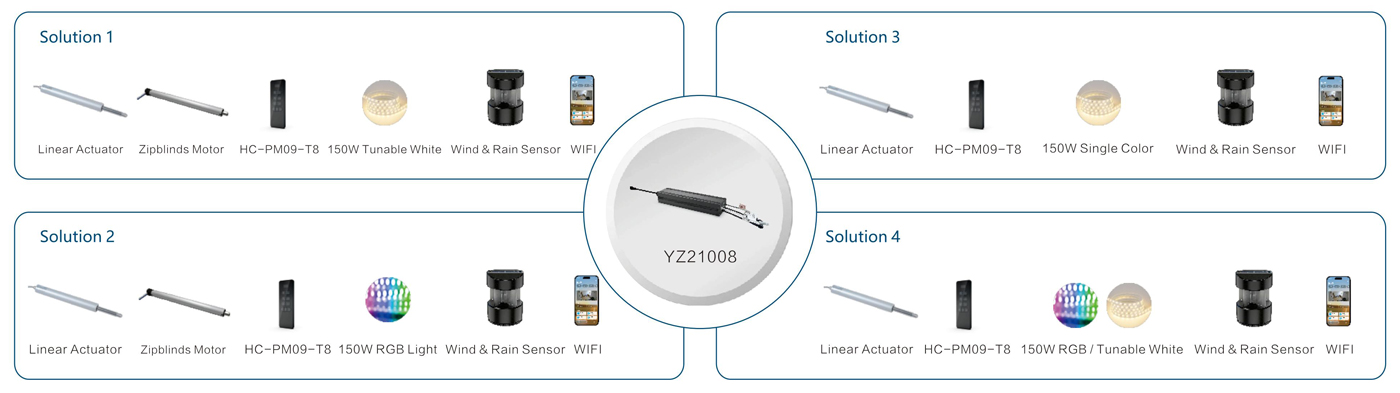

Lightweight Controller Solution
Technical Parameters
| Product Series | Product Name | Model | Working Voltage | Rated Load Power | Receiving Frequency | Working Temperature |
| YZ21008 Series | Light-Duty Pavilion Dual-Color Light Single Motor Controller | YZ21008-01A-WF | 100VAC-240VAC 50/60Hz | Louver motor:50W; Cold/warm light:100W | 868.35MHz(FSK) | -20℃~ +85℃ |
| YZ21008 Series | Light-Duty Pavilion Dual-Color Light Controller | YZ21008-02A-WF | 100VAC-240VAC 50/60Hz | Cold/warm light:150W | 868.35MHz(FSK) | -20℃~ +85℃ |
| YZ21008 Series | Light-Duty Pavilion RGB Light Single Motor Controller | YZ21008-03A-WF | 100VAC-240VAC 50/60Hz | Louver motor:50W; RGB light:100W | 868.35MHz(FSK) | -20℃~ +85℃ |
| YZ21008 Series | Light-Duty Pavilion RGB Light Controller | YZ21008-04A-WF | 100VAC-240VAC 50/60Hz | RGB light:150W | 868.35MHz(FSK) | -20℃~ +55℃ |
| YZ21008 Series | Light-Duty Pavilion RGB Light Controller | YZ21008-04A-WF | 100VAC-240VAC 50/60Hz | RGB light:150W | 868.35MHz(FSK) | -20℃~ +85℃ |
| Push Rod Motor | - | HM-B36CW\200A-D24A-600N | DC24±10% | 14W | 868.35MHz(FSK) | -20℃ ~+75℃ |
| Push Rod Motor | - | HM-B45CW\100B-D24A-1000N | DC24±10% | 24W | 868.35MHz(FSK) | -20℃ ~+75℃ |
| Push Rod Motor | - | HM-B45CW\200B-D24A-1000N | DC24±10% | 24W | 868.35MHz(FSK) | -20℃ ~+75℃ |
| Windproof Roller Shutter Motor | Built-in Power Mute DC Electronic Limit Motor | YZM45T-15/17ADEREZWQ | 100VAC-240VAC 50/60MHZ | 72W | 868.35MHz(FSK) | -20℃ ~ +60℃ |
| Windproof Roller Shutter Motor | 4-Wire AC Electronic Limit Motor (YGL Customized) | YZM45T-20/15CEEZW | 100VAC-240VAC 50/60MHZ | 156W | 868.35MHz(FSK) | -20℃ ~ +60℃ |
| HC-PM09-T8 | 9-Key 8-Frequency Transmitter | HC-PM09-T8-FSK | 3.0VDC | 0.06W | 868.35MHz(FSK) | 0℃ ~+70℃ |
| Rain/Wind Sensor | - | YZ61002-01S/RF | 3.3-3.7VDC | 0.1W | 868.35MHz(FSK) | -20℃ ~ +60℃ |
Specializing in indoor and outdoor shading motor systems for smarter spaces.
We offer one-stop OEM/ODM services, from design to mass production. Whether it's for curtain motors, tubular motors, or smart control systems, we support extensive customization to precisely meet the needs of building and home automation.
