Product Features
IP65 waterproof for outdoor installation
FSK, ≥200m open-air range
Zero-gap mounting for slim frame & full blackout
Anti-interference design for precise stroke
Hall sensor ensures high-precision stable limit
Industrial-grade anti-surge performance
Imported premium chip for stable & consistent output
Function Description
RF remote control
Auto stroke setting on stall
External dry contact function
RS485 communication
5 optional dry-contact modes
10-level adjustable stall sensitivity
Selectable stall rebound time & stop mode
Favorite position memory

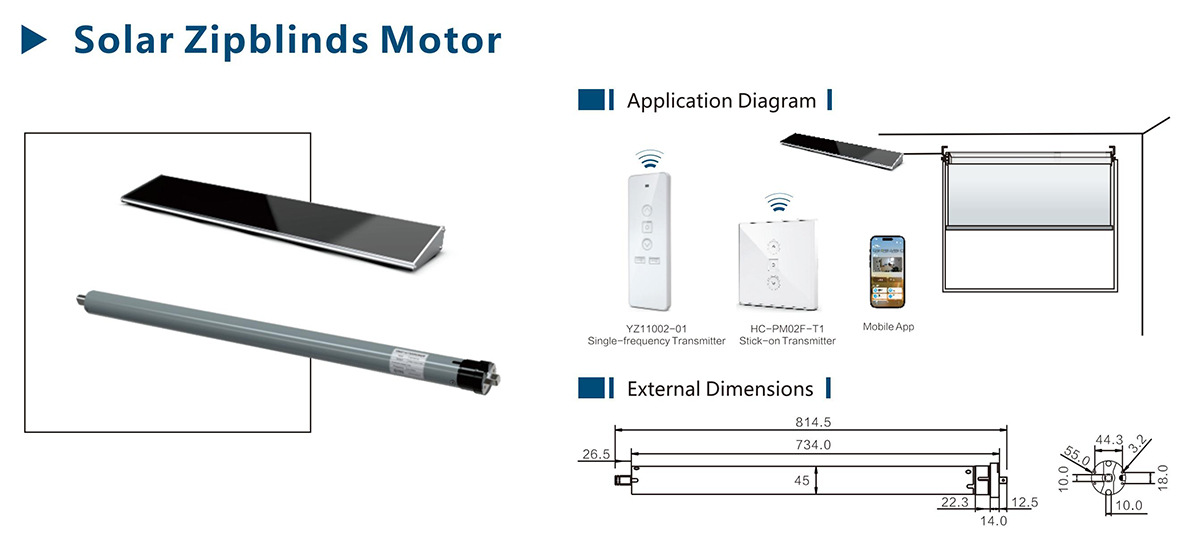

Technical Specifications
| Product Name | Model No. | Operating Voltage | Rated Torque | Rated Speed | Rated Power | Reception Frequency | Dimension | IP Rating |
| Ultra-quiet Low-power Stall-rebound Electronic Limit Motor | YZM45T–15/17ODEREZWQ | 24VDC | 15Nm | 17rpm | 72W | 868.35MHz (FSK) | 45*814.5mm | IP65 |
| DC Zipblinds Electronic Limit Motor | YZM45T–30/17ODEREZW | 100–240VAC 50/60Hz | 30Nm | 17rpm | 72W | 868.35MHz (FSK) | 45*696.5mm | IP65 |
| Extra-wide Zipblinds Electronic Limit Motor (No Thermal Protection) | YZM45T–50/12ODEREZW | 100–240VAC 50/60Hz | 50Nm | 12rpm | 180W | 868.35MHz (FSK) | 45*736.5mm | IP65 |
| Solar Panel | YZ71001-01 | 12V | / | / | 3.5W | / | / | IP67 |
