Product Features
01
Dual–motor Output, 24V/Max6A adjustable by input voltage
02
868.35MHz RF, built–in antenna, control distance >200m
03
Buzzer prompt for easy operation
04
Premium IC, strong anti–interference & stable performance

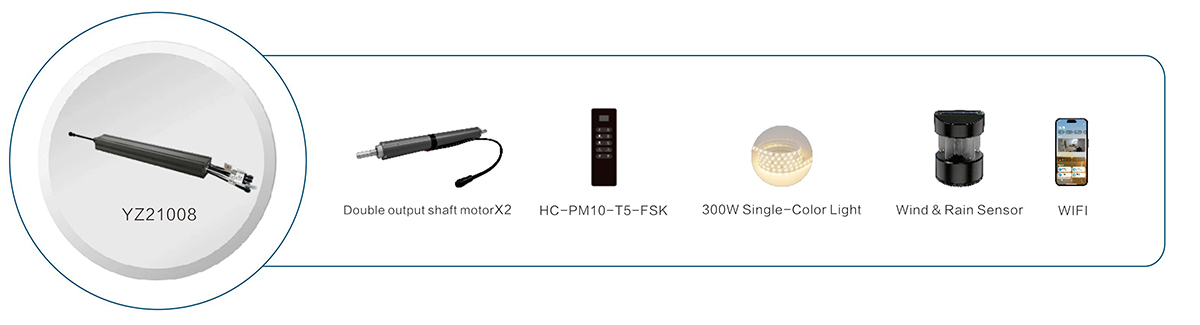

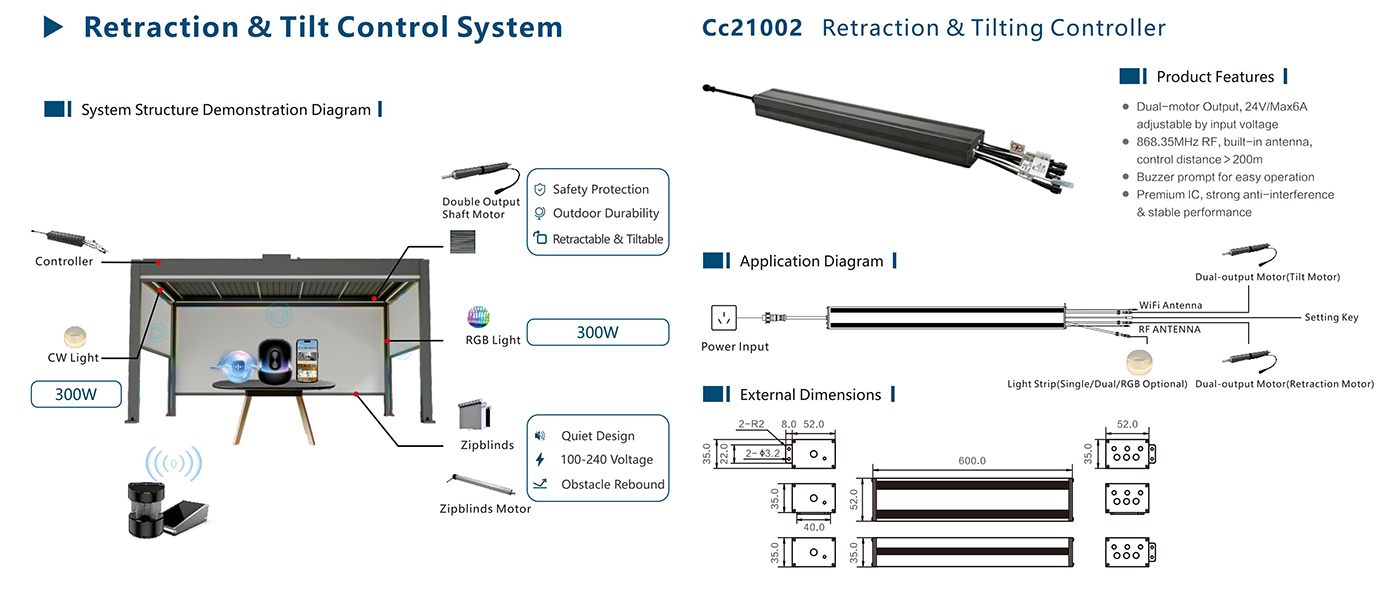

Retraction & Tilt Control System Pergola Solution
Technical Specifications
| Product Series | Product Name | Model No. | Operating Voltage | Rated Load Power | Reception Frequency | Operating Temperature |
| / | CC21002-Retraction & Tilting Controller | CC21002-04A | 100VAC–240VAC 50/60Hz | 24VDC /6A | 868.35MHz(FSK) | −20℃ ~ +60℃ |
| HC-PM10 Series | 10-Key 5-Frequency Transmitter | HC-PM10-T5-FSK | 3.0VDC | / | 868.35MHz(FSK) | −20℃ ~ +60℃ |
| Wind & Rain Sensor | / | YZ61002-01S/RF | 3.3–3.7VDC | 0.1W | 868.35MHz(FSK) | −20℃ ~ +60℃ |
