Zipblinds can block wind, rain and insects while keeping ventilation & natural daylight, creating cozy leisure space for terrace & sunroom against harsh weather, improving space aesthetics and practicability.
Product Features
Global Wide Voltage 100–240V AC
Ultra Quiet Construction
Obstacle Stop & Reverse
IP65 Waterproof design
FSK RF, Range >200m
Imported core chip, stable & consistent output
Anti-interference design, accurate travel
Function Description
RF remote control
Auto travel setup by obstacle detection
Dry contact interface
RS485 interface
5 selectable dry contact modes
10-level adjustable obstacle sensitivity
Optional stall rebound time & stop mode
Favorite position memory

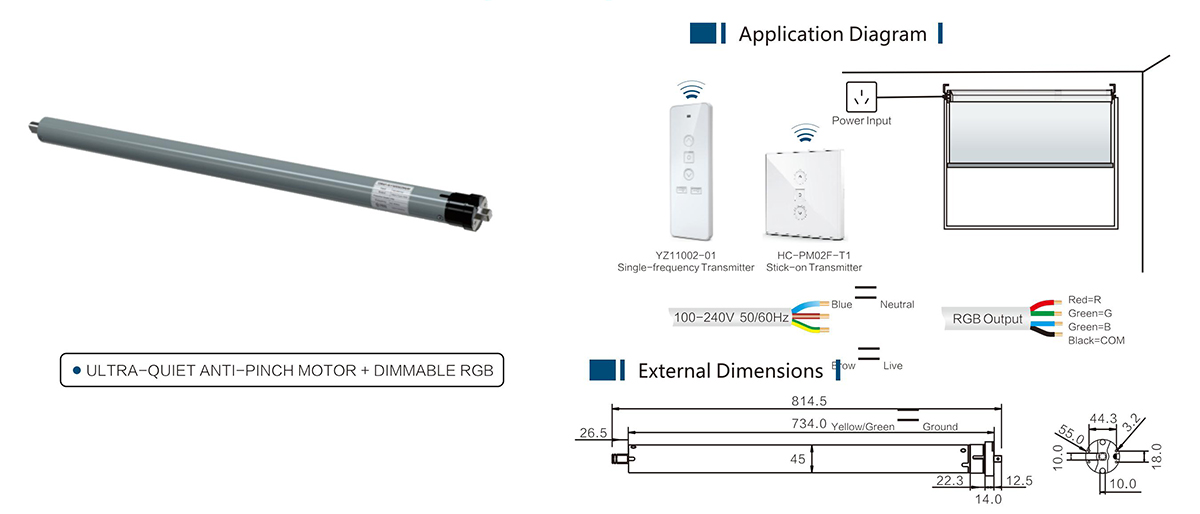

Technical Specifications
| Product Name | Model No. | Operating Voltage | Rated Torque | Rated Speed | Rated Power | Reception Frequency | Dimension | IP Rating |
| Obstacle Reverse Ultra-quiet ZipBlind Motor | YZM45T–15/17ADEREZWQ | 100–240VAC 50/60Hz | 15Nm | 17rpm | 72W | 868.35MHz (FSK) | 45*814.5mm | IP65 |
| Obstacle Reverse Ultra-quiet ZipBlind Motor | YZM45T–20/17ADEREZWQ | 100–240VAC 50/60Hz | 20Nm | 17rpm | 72W | 868.35MHz (FSK) | 45*814.5mm | IP65 |
| RGB-Obstacle Reverse Ultra-quiet ZipBlind Motor | YZM45T–15/17ADEREZWQL | 100–240VAC 50/60Hz | 15Nm | 17rpm | 72W | 868.35MHz (FSK) | 45*814.5mm | IP65 |
