Flexibly openable & closable sunroom provides sunshade, rainproof, daylighting and ventilation functions. Perfect for courtyard, terrace, poolside and commercial outdoor leisure space, available all year round with excellent practicality and ornamental value

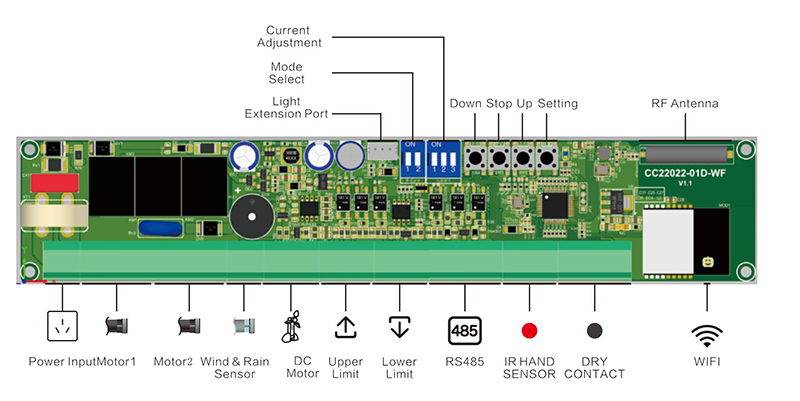

Function Description
RF Remote Control
Dual Brushless Motor Synchronous Control
Single / Dual Motor Mode Switchable
Adjustable Load Current
Supported Wind Rain Sensor
Built-in Smart WiFi Module
External Dry Contact Input
RS485 Central Control
Code Pair Function
IR Trigger Function
Mechanical Limit Switch Input
Product Features
Wide Input Voltage: 20~30VDC
Reverse Polarity Protection
LED Status Indicator for Intuitive HMI
FSK Modulation, Open-air RF Range: >200m
Premium Brand IC, Stable & Reliable Performance
Technical Specifications
| Product Name | Model No. | Operating Voltage | Rated Power | Dimension | Reception Frequency |
| Movable Sunroom Control System | CC22022-01D-WF | 24VDC | 120W(24V/5A) * 3CH | 200 Lmm × 38.1 Wmm × 25 Hmm | 868.35MHz (FSK) |
