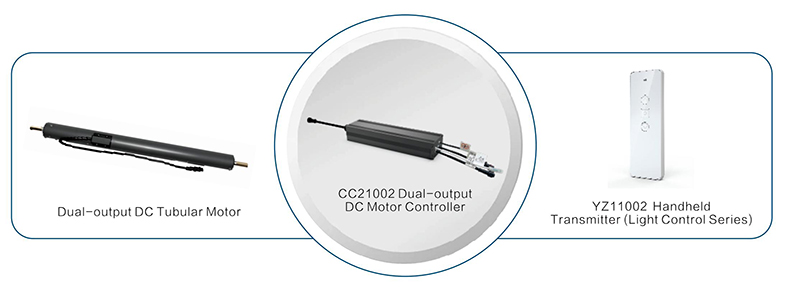

CC21002 Dual-output DC Controller Features
RF remote control
Dual-shaft output
Fire linkage control
Dual-output DC Motor Features
Bidirectional synchronous drive for symmetric transmission
24V low voltage, high torque, dust & oil proof
Electronic limit, RS485, multi-speed, wind/rain sensor compatible
Long-range RF, expandable to dry contact, smart module & light strip
Fits sliding skylight, lifting cabinet & other structures
Technical Specifications
| Product Name | Model No. | Operating Voltage | Transmitting Frequency |
| Dual-output DC Motor Controller | CC21002-04A | 100-240VAC 50/60Hz | 868.35MHz (FSK) |
| Dual-output DC Motor | YZM45-50/12 | 24VDC ± 15% | / |
| Model No. | Product Name | Battery Type | Transmitting Frequency | Remote Control Distance | Operating Temperature | Dimension(L * W * H) |
| YZ11002-01 | Single-frequency Transmitter | CR2450 (3V) | 433.92MHz (ASK)868.35MHz (FSK) | 120m in open area (ASK)260m in open area (FSK) | −20℃~+60℃ | 132 * 45 * 9.5mm |
