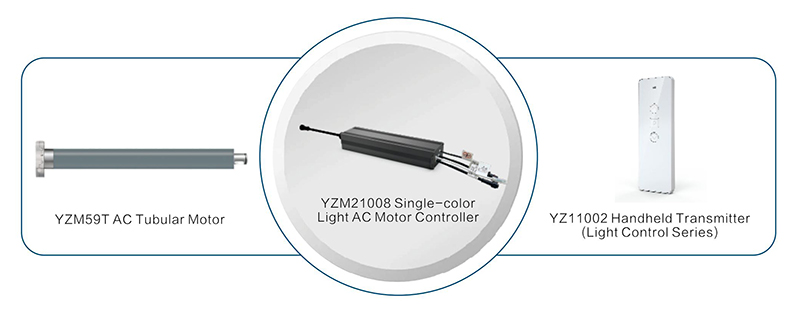

YZM21008 Controller
Wide input: 100–240VAC 50/60Hz, global compatible
24VDC/150W dimmable LED lighting output
Built-in FSK RF (868.35MHz), remote >200m
Rain sensor port for auto-close on raining
External pairing button + status LED for easy setup
Fault indication output for quick troubleshooting
Premium international MCU for stable performance
YZM59T Motor
110/230VAC 50/60Hz
Universal FSK 868.35MHz RF
Multiple mounting adapters available
Max lifting load: 200k
Technical Specifications
| Model No. | Rated Torque | Rated Speed | Rated Power | Operating Voltage | IP Rating |
| YZM59T-80/12 | 80Nm | 12rpm | 370W | 110/230V/50Hz | IP44 |
| YZM59T-100/12 | 100Nm | 12rpm | 441W | 110/230V/50Hz | IP44 |
| Model No. | Product Name | Rated Torque | Rated Power | Operating Voltage | Reception Frequency |
| YZ21008-05A-LW | AC Motor Controller with Single-color Indicator Light | / | / | 100–240VAC 50/60Hz | 868.35MHz (FSK) |
