Product Features
20 – 30VDC Wide Voltage, Reverse Polarity Protection, Brand Chip, Stable Performance
2 × 24VDC Louver Motor(Max6A/350W), RGB+Tunable White, Dimming & Auto Fade
868.35MHz Encrypted RF >200m, Built-in WiFi, Light Music Sync
Expandable 6 Blinds, Rain Sensor Port, Multi-group Control
RS485, Pair Key & Indicator, Easy Commissioning

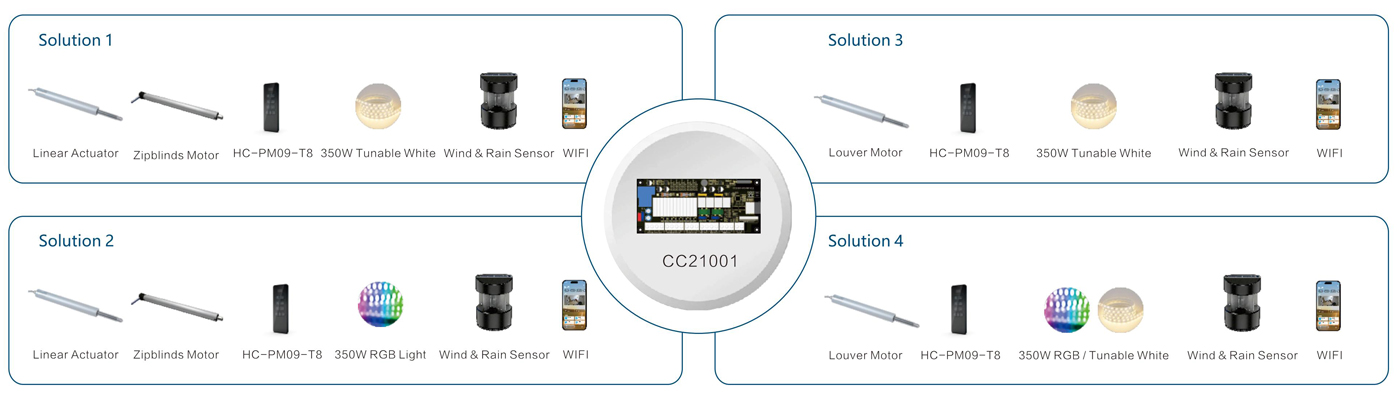

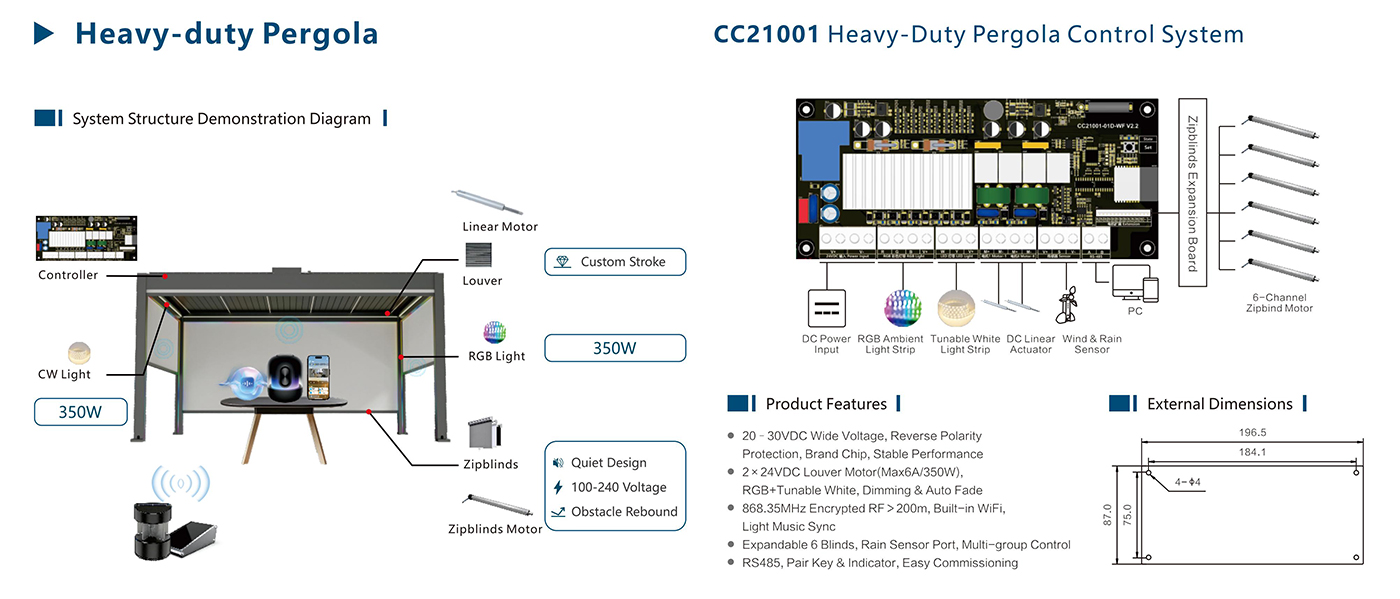

Heavy-Duty Pergola Solution
Technical Specifications
| Product Series | Product Name | Model No. | Stroke | Operating Voltage | Rated Load Power | Reception Frequency | Operating Temperature |
| / | Heavy-Duty Pergola Controller | CC21001-01D-WF | / | 24VDC | / | 868.35MHz (FSK) | / |
| Linear Actuator | / | HM-B36CW\200A-D24A-600N | 200A | DC24 ± 10% | 14W | 868.35MHz(FSK) | −20℃ ~ +75℃ |
| Linear Actuator | / | HM-B45CW\100B-D24A-1000N | 100B | DC24 ± 10% | 24W | 868.35MHz(FSK) | −20℃ ~ +75℃ |
| Linear Actuator | / | HM-B45CW\200B-D24A-1000N | 200B | DC24 ± 10% | 24W | 868.35MHz(FSK) | −20℃ ~ +75℃ |
| Zipblinds Motor | YZM45T−15/17ADEREZWQBuilt-in Power Silent DC Electronic Limit Motor | YZM45T−15/17ADEREZWQ | / | 100VAC−240VAC 50/60MHZ | 72W | 868.35MHz(FSK) | −20℃ ~ +60℃ |
| Zipblinds Motor | YZM45T−20/15CEEZWBuilt-in Power Silent DC Electronic Limit Motor | YZM45T−20/15CEEZW | / | 100VAC−240VAC 50/60MHZ | 156W | 868.35MHz(FSK) | −20℃ ~ +60℃ |
| HC-PM09-T8 | 9-Key 8-Frequency Transmitter | HC-PM09-T8-FSK | / | 3.0VDC | 0.06W | 868.35MHz(FSK) | −20℃ ~ +60℃ |
| Wind & Rain Sensor | YZ61002 | YZ61002-01S/RF | / | 3.3−3.7VDC | 0.1W | 868.35MHz(FSK) | −20℃ ~ +60℃ |
Specializing in indoor and outdoor shading motor systems for smarter spaces.
We offer one-stop OEM/ODM services, from design to mass production. Whether it's for curtain motors, tubular motors, or smart control systems, we support extensive customization to precisely meet the needs of building and home automation.
