Product Features
Ip65 waterproof, outdoor use
FSK, ≥200m open-air range
Zero-gap fit, slim frame & full shading
Anti-interference, precise stroke
Hall sensor, stable high-precision limit
Industrial surge resistance
Imported chip, stable consistency
Function Description
RF remote control
Auto stroke setting by stall
External dry contact input
RS485 communication
5 optional dry-contact modes
10-level adjustable stall sensitivity
Selectable stall rebound time & stop mode
Favorite position memory
Technical Specifications
| Product Name | Model No. | Operating Voltage | Rated Torque | Rated Speed | Rated Power | Reception Frequency | Dimension | IP Rating |

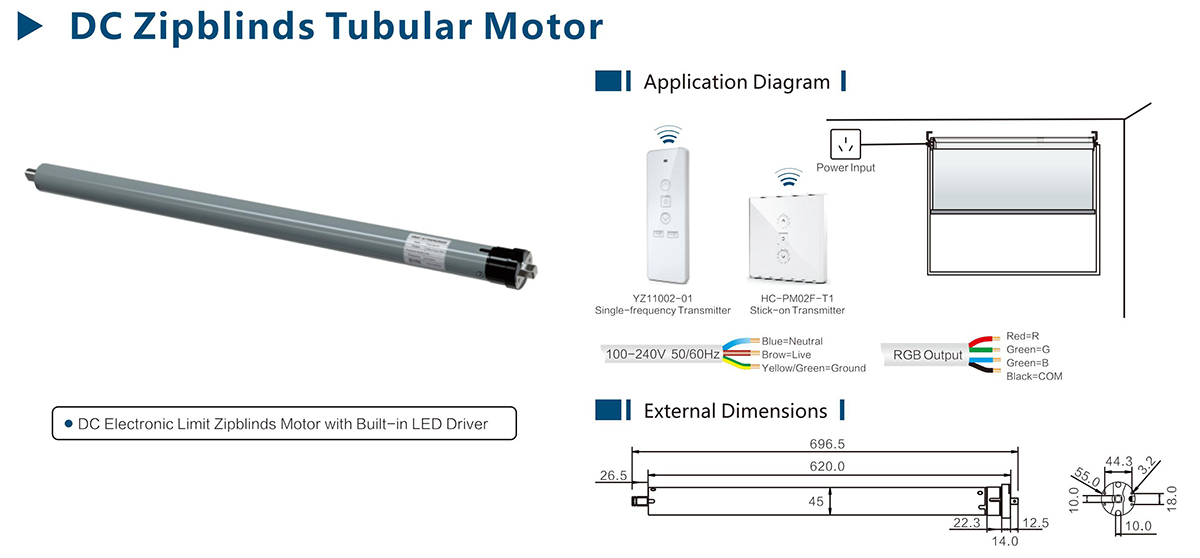

| DC Zipblinds Tubular Motor | YZM45T–30/17ADEREZW | 100–240VAC 50/60Hz | 30Nm | 17rpm | 72W | 868.35MHz (FSK) | 45*696.5mm | IP65 |
| Extra-Wide Zipblinds Electronic Limit Motor without Thermal Protection | YZM45T–50/12ADEREZW | 100–240VAC 50/60Hz | 50Nm | 12rpm | 180W | 868.35MHz (FSK) | 45*736.5mm | IP65 |
| DC Zipblinds Electronic Limit Motor with Built-in LED | YZM45T–30/17ADEREZWL | 100–240VAC 50/60Hz | 30Nm | 17rpm | 72W | 868.35MHz (FSK) | 45*696.5mm | IP65 |
