Product Features
IP65 waterproof for outdoor use
FSK modulation, ≥200m open-air RF range
Zero-gap fitting, slim frame & full blackout
Anti-interference for precise travel
Hall sensor, high-precision stable limit
Industrial-grade surge resistance
Imported MCU for stable & consistent performance
Function Description
RF remote control
Auto stroke setup on stall
External dry contact
RS485 communication
5 optional dry-contact modes
10-level adjustable stall sensitivity
Selectable stall rebound time & stop mode
Favorite position memory
Technical Specifications

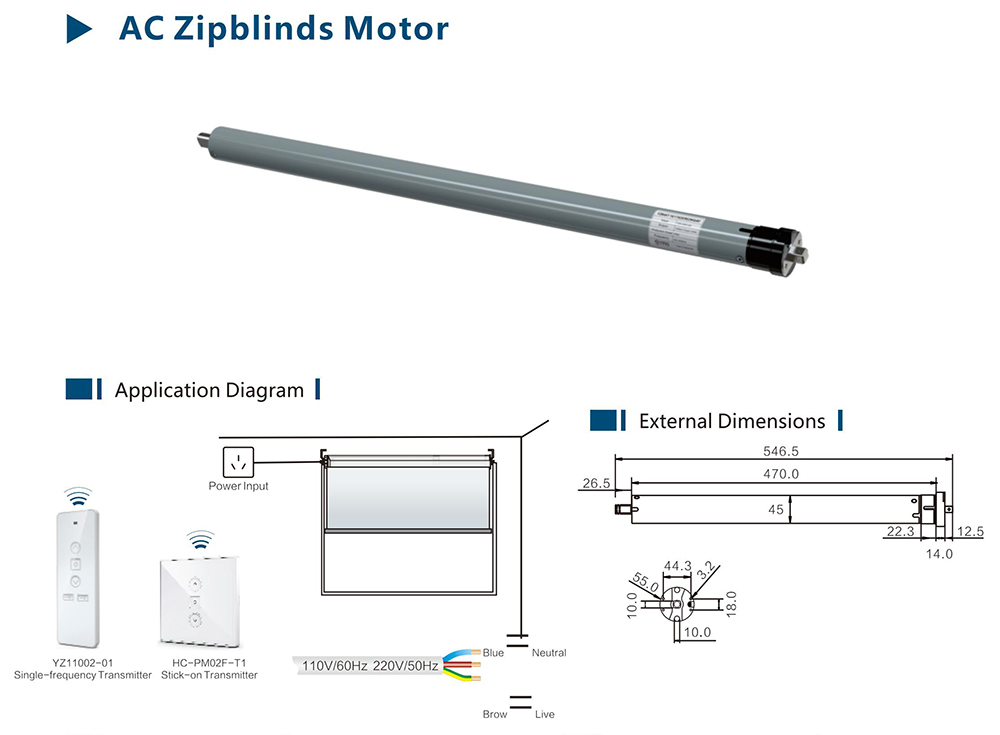

| Product Series | Product Name | Model No. | Operating Voltage | Rated Torque | Rated Speed | Rated Power | RX Frequency | Dimension L mm | IP Rating |
| YZM45 Series | AC Zipblinds Electronic Limit Motor | YZM45T–20/17 –AEREZW | 110V/60Hz 220V/50Hz | 20Nm | 17rpm | 156W | 868.35MHz (FSK) | L:546.5 mm | IP65 |
| YZM45 Series | Extra-wide Zipblinds Electronic Limit Motor | YZM45T–50/12 –AEREZW | 110V/60Hz 220V/50Hz | 50Nm | 12rpm | 262W | 868.35MHz (FSK) | L:616.5 mm | IP65 |
