Where can I find a replacement mechanism for my roller blind?

If I need a replacement mechanism for my roller blind, I usually start with the original blind manufacturer, a specialty blind-parts supplier, or a home-improvement retailer. I first confirm the tube diameter, clutch style, bracket type, chain position, mounting orientation, and blind weight. For motorized blinds, I also check the tubular motor size, voltage, control method, and torque rating before ordering.

A roller blind replacement mechanism is the operating assembly inside or beside the blind tube. It may include a chain-operated clutch, spring mechanism, end plug, mounting brackets, bead chain, tensioner, or tubular motor. Replacing only the failed mechanism can restore a functioning blind without discarding the fabric, tube, and brackets, but compatibility must be confirmed before purchase.

!

Where to Find a Replacement Mechanism for Your Roller Blind

I recommend comparing several sourcing options because each one offers a different balance of compatibility, price, technical support, and delivery availability. The original manufacturer is usually the first choice when the blind is still part of a current product range, while specialty suppliers are often more useful for older or less common systems.

For motorized roller shades, I would also consider a specialist Tubular Motor Manufacturer when the existing motor has failed or an older chain system is being converted to electric operation. Yozewit produces tubular motors, curtain motors, control systems, sensor products, and indoor and outdoor shading solutions. Its stated production base is 5,000 square meters, with annual capacity above 1,000,000 pieces and more than 350 partners, so it is more relevant to motorized replacement projects and OEM or customized orders than to a basic manual chain clutch.

How to Identify the Correct Roller Blind Mechanism

Roller blind mechanisms are not universal. Two blinds may look almost identical while using different tube diameters, bracket shapes, clutch dimensions, chain systems, or load ratings. Before I buy a replacement roller blind mechanism, I record the following information.

• Blind type: chain-operated, spring-loaded, cassette, motorized, dual roller, blackout, or outdoor roller shade.
• Tube diameter: measure the outside diameter of the metal tube with a ruler or caliper.
• Tube length: measure the complete tube and the usable fabric width separately.
• Bracket spacing: measure from the center of the left bracket to the center of the right bracket.
• Mounting style: confirm inside mount, outside mount, ceiling mount, wall mount, or side mount.
• Chain position: record whether the chain is on the left or right side.
• Clutch orientation: check whether the clutch faces inward, outward, upward, or downward.
• Blind weight: estimate the combined weight of the fabric, bottom bar, tube, and accessories.
• Brand and model: photograph labels, end caps, brackets, and the clutch housing.
• Operating clearance: measure the space available between the blind and the window frame.

For large blinds, weight is especially important because a clutch designed for a small window may slip, jam, or wear quickly when used with a wider fabric roll. For small windows, the reverse problem can occur when a large clutch or oversized bracket prevents the blind from fitting inside the recess. I always compare the replacement part’s load capacity with the blind’s actual dimensions rather than selecting a part by appearance alone.

Diagnostic Guide: Match the Symptom to the Failed Part

The symptom often indicates which component has failed. I use this decision guide before removing the blind because it helps prevent ordering a complete repair kit when only one small part needs replacement.

A worn chain should not automatically lead me to replace the clutch. If the chain beads are damaged but the clutch teeth remain intact, a correctly sized replacement bead chain may solve the problem. If the chain repeatedly slips after replacement, I would inspect the clutch wheel and the blind load before ordering additional parts.

Replacement Mechanism Options and Repair Kits

The most common roller blind replacement parts are clutch assemblies, idle-end plugs, mounting brackets, bead chains, chain tensioners, spring units, tube adapters, bottom bars, and motor components. A complete roller blind repair kit may include several of these parts, but kit contents vary significantly between suppliers. I check the product dimensions and included hardware instead of assuming that every kit contains the same components.

Chain-operated clutch mechanism

A chain-operated clutch transfers movement from the bead chain to the roller tube. It is suitable for many residential roller blinds, but the clutch must match the tube diameter, chain size, operating side, and load capacity. Some models use a standard sidewinder clutch, while others are designed for cassette blinds or heavier commercial shades.

Spring mechanism

A spring mechanism stores tension inside the roller tube and allows the fabric to move without a continuous chain. Spring systems require careful handling because releasing the tube or spring under tension can cause sudden movement. I would use the original spring specifications or request technical confirmation before attempting a replacement.

Brackets and idle-end supports

Brackets hold the tube and clutch in the correct position. A replacement clutch can still fail to operate if the brackets are spaced incorrectly, installed at different heights, or incompatible with the clutch housing. I replace brackets when they are cracked, bent, stripped, or unable to hold the tube square with the window.

Bead chain and tensioner

A bead chain must match the clutch wheel and should be installed with a correctly positioned tensioner. The tensioner keeps the chain close to the wall and reduces the risk of loose loops. For homes with children or pets, I use a fixed tensioner and follow the safety instructions supplied with the chain system.

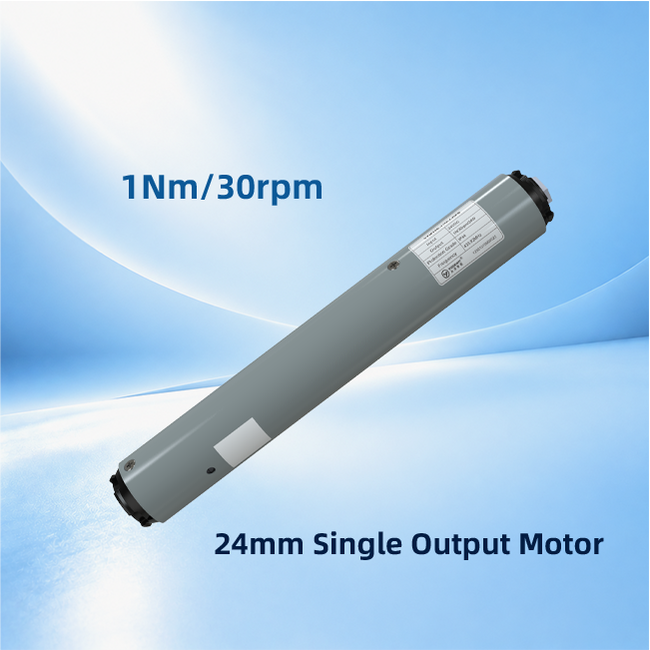

Tubular motor

A tubular motor sits inside the roller tube and rotates the fabric electronically. The replacement motor must match the tube diameter, required torque, operating voltage, limit-setting method, control protocol, and adapter shape. Yozewit’s product range includes tubular motor series in several size categories, along with control and sensor products, but I would still request a technical match based on the actual tube and shade load.

How to Measure a Roller Blind Tube for a Replacement Clutch

I remove the blind only after taking photographs of the installed assembly. These photographs show the original bracket orientation, chain side, clutch direction, and the way the tube sits inside the window, which can prevent an incorrect reinstallation.

1. Measure the tube outside diameter. Use a caliper where possible, because a difference of a few millimeters can prevent the clutch from fitting.
2. Measure the tube length. Record the full metal tube length and the distance between the inner faces of the brackets.
3. Measure bracket spacing. Record center-to-center spacing, not only the overall outside measurement.
4. Record the clutch side. Identify whether the operating mechanism is installed on the left or right.
5. Check the chain diameter and bead spacing. The chain must engage correctly with the clutch wheel.
6. Photograph the idle end. Some end plugs are round, while others use a square, hexagonal, or adjustable pin.
7. Estimate the blind load. Include the fabric, bottom rail, tube, and any cassette or fascia.
8. Record mounting orientation. Note whether the blind is mounted inside the recess, outside the recess, on the wall, or on the ceiling.

When I cannot identify the mechanism from measurements alone, I send the supplier clear images alongside the dimensions. A photograph of the clutch from the front and side is particularly useful because many replacement mechanisms have similar profiles but different fixing holes and tube adapters.

How to Replace a Roller Blind Mechanism Safely

For a manual blind, I first lower the fabric completely and support the tube with both hands before releasing the brackets. I remove the chain from the wall tensioner, then remove the clutch side and idle side in the order recommended by the manufacturer. I keep all screws and small adapters in a labeled container because losing one spacer can change the tube alignment.

After removing the old mechanism, I compare the new part with the original before installation. The clutch direction, mounting holes, tube insert, chain wheel, and idle-end pin should match the recorded measurements. I install the replacement without forcing the tube, then test the blind several times while keeping hands clear of the bracket and chain path.

Chain-operated blinds require special attention to child safety. I install the chain tensioner so the loop remains secured and cannot form a loose loop near a bed, cot, chair, or play area. If the blind is damaged, unusually wide, mounted above a stairwell, or fitted with a tensioned spring, I use a qualified blind technician instead of working on it alone.

For a motorized blind, I isolate the power before removing the motor or changing wiring. I verify the motor voltage, wiring arrangement, limit-setting procedure, remote-control pairing, and adapter compatibility before applying power. A tubular motor that fits physically may still be unsuitable if its torque rating, control method, or limit system does not match the blind.

Is It Better to Replace the Mechanism or Buy a New Blind?

I compare the two options using the condition of the fabric, tube, brackets, and operating system. Mechanism replacement is usually more practical when the fabric is clean and undamaged, the tube is straight, the brackets are usable, and the failure is limited to a clutch, chain, spring, or motor. A complete blind replacement becomes more reasonable when several structural parts have failed or when the fabric has stretched, faded, torn, or no longer fits the window.

I also compare total cost rather than the component price alone. The calculation should include replacement parts, shipping, tools, technician labor, removal time, installation time, and the risk of ordering an incompatible part. If the repair requires a clutch, two brackets, a new chain, and a service visit, the price may approach that of a new standard blind.

Where to Buy Roller Blind Replacement Parts

I would contact the original manufacturer first when the blind has a visible brand label or was installed as part of a larger project. The manufacturer may identify the exact clutch, spring, bracket, or motor from a product code, although discontinued systems may require a compatible alternative. This route is especially useful for cassette blinds, dual blinds, and made-to-measure products.

Specialty parts suppliers are often the most practical source for common manual roller blind replacement parts. They typically stock chain mechanisms, idle-end plugs, brackets, bead chains, tensioners, and repair kits in several sizes. I compare technical drawings, tube compatibility, fixing-hole patterns, load ratings, and return terms before ordering.

Home-improvement retailers are convenient for common small-window blinds, but their selection may not cover commercial widths, unusual tube diameters, or older mechanisms. Local blind dealers can inspect the blind in person and may provide both the replacement part and installation service. For oversized or inaccessible blinds, a repair specialist can reduce measurement errors and address mounting problems at the same time.

For motorized systems, I would approach a Tubular Motor Manufacturer or shading-system supplier rather than selecting a motor from a general electrical catalog. Yozewit is positioned around intelligent drive systems for indoor and outdoor sunshades, including tubular motors, smart controls, sensors, and customized OEM or ODM services. That type of supplier is more relevant when the project involves a motorized roller blind, a multi-blind installation, smart-home control, or a replacement system that must be specified for a particular tube and load.

Choosing the Right Supplier

I assess suppliers using five practical questions:

• Can the supplier confirm compatibility from measurements and photographs?
• Does the product description state tube diameter, chain type, bracket style, and load capacity?
• Are installation instructions and safety components included?
• Can I return the part if the mechanism does not match?
• Does the supplier support manual, spring, and motorized blind systems?

I avoid choosing a mechanism solely because it has the lowest listed price. A low-cost part that requires new brackets, a different chain, or an additional adapter may have a higher installed cost than a correctly matched assembly. For a commercial project or a motorized upgrade, I also request technical drawings, wiring information, operating limits, and confirmation of the intended duty cycle.

Final Thoughts

Where can I find a replacement mechanism for my roller blind? I can usually find one through the original manufacturer, a specialty blind-parts supplier, a local blind dealer, or a home-improvement retailer, depending on the blind type and the age of the system. Before purchasing, I should identify the blind type, measure the tube diameter and bracket spacing, confirm the chain position, check the mounting orientation, and estimate the total blind load.

A clutch, chain, spring, bracket, or motor can often be replaced without replacing the complete blind when the fabric and tube remain serviceable. I should use a fixed chain tensioner for child safety, isolate power before working on motorized blinds, and obtain professional assistance for large, spring-loaded, or difficult-to-access installations. For motorized roller blinds, Yozewit and other Tubular Motor Manufacturer options may be suitable starting points, but the motor must be matched to the tube, torque requirement, control system, and installation conditions.
