Solution of Electric Projection Screen and Hanger System.
Projection screen is one of the most commonly used products in projector peripheral equipment, projection screen is the abbreviation of projection screen; The tubular motor provides the driving force, and the operation of the screen system is controlled through the wireless control system. If the projection screen is properly matched with the projector, high-quality projection effects can be obtained.
Generally, it can be divided into two categories: reflection type and transmission type; The reflective type is used for front projection, and the transmissive type is used for rear projection; The front projection curtain is divided into flat curtain and arc curtain; Plane curtain can be divided into glass bead curtain, metal curtain, embossed plastic curtain, elastic curtain, etc.
System Features
01
The electric screen can be used with (YZM35T series) tubular motor and control system. The motor is small in size, large in tension, silent operation and stable and reliable
02
Stable electronic limit module is used inside the motor, and the system installation and debugging are simple and convenient
03
The screen is evenly lowered from both ends through the motor to ensure that the screen is not affected by external forces and can be easily lifted and lowered, which can maintain the smoothness ofthe screen for a long time and efectively prevent the generation ofscreen ripples;
04
Inteligent control systems such as manual key control,infrared control, wireless remote control, and rojector linkage can be used;

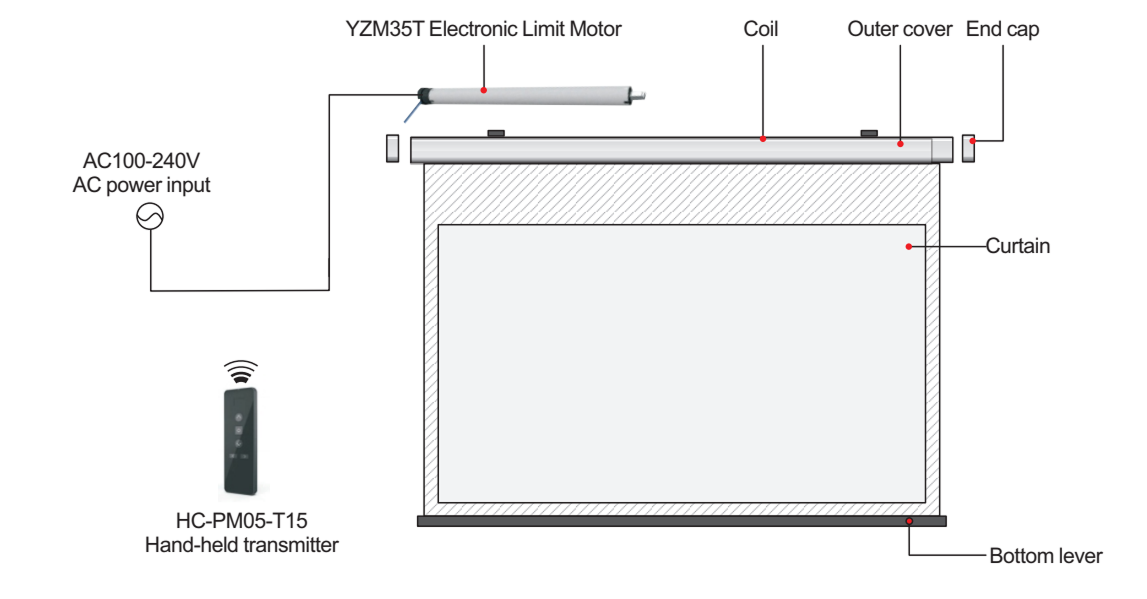

System Solution

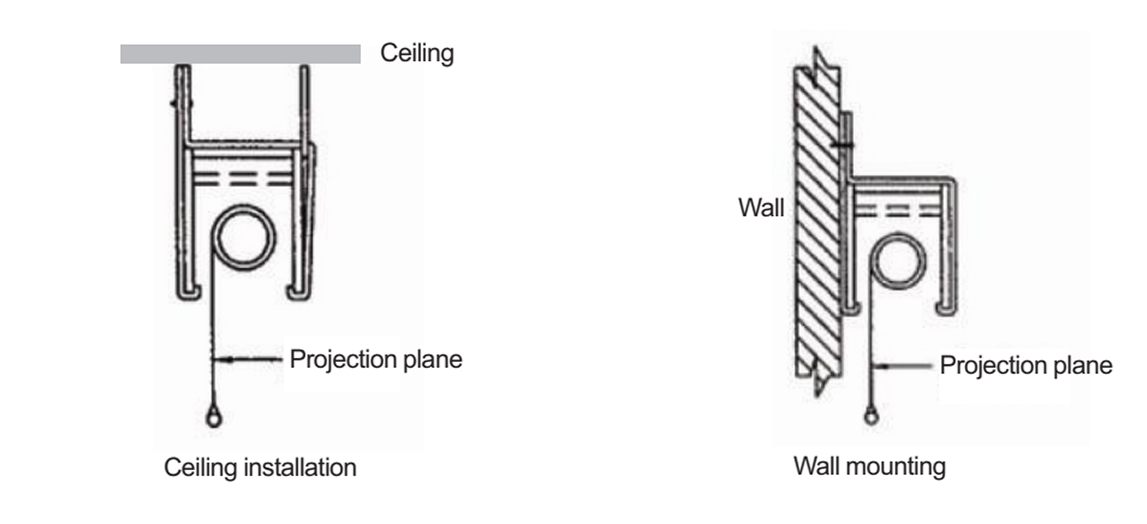

Installation Methods
YZM35 Series Parameters
| Product name | Product model | Torque | Rotational speed | Product size | Rated power | Protection class | Brief Features |
| YZM45T Electronic Limit Motor | YZM35T -10/17 -AER/RF | 10Nm | 17rpm | L:522mm | 130W | IP44 | • RF remote control • RS485 Features • Automatic travel setting • External dry contact function |
| YZM35T Intelligentelectronic limit motor | YZM35T -10/17 -AER/WF | 10Nm | 17rpm | L:522mm | 130W | IP44 | • RF remote control • Built-in smart module • Resistance protection • Limit position limit point function |
| YZM35T Intelligent electronic limitmotor (dedicatedtoground liftingcurtain) | YZM35T-10/ 17-AER/WF -DSM | 10Nm | 17rpm | L:522mm | 130W | IP44 | • RF remote control Limit position limit point function • The upper limit bit is in place and the rebound function • Resistance protection • Built-in smart module |
| YZM35T Hall Wire External Lead Motor | YZM35T -10/17 -AH | 10Nm | 17rpm | L:522mm | 130W | IP44 | • Silent design with noise as low as 40DBM • Standardized fixed seat size, compatible with most crowns on the market • Adopt Hall sensor, high precision, stable and reliable |
| YZM35T Mechanical limit motor | YZM35T -10/17 -AM | 10Nm | 17rpm | L:522mm | 130W | IP44 | • IP44 protection class • Maximum limit lap speed 30 laps • Silent design, noise down to 45DB |
