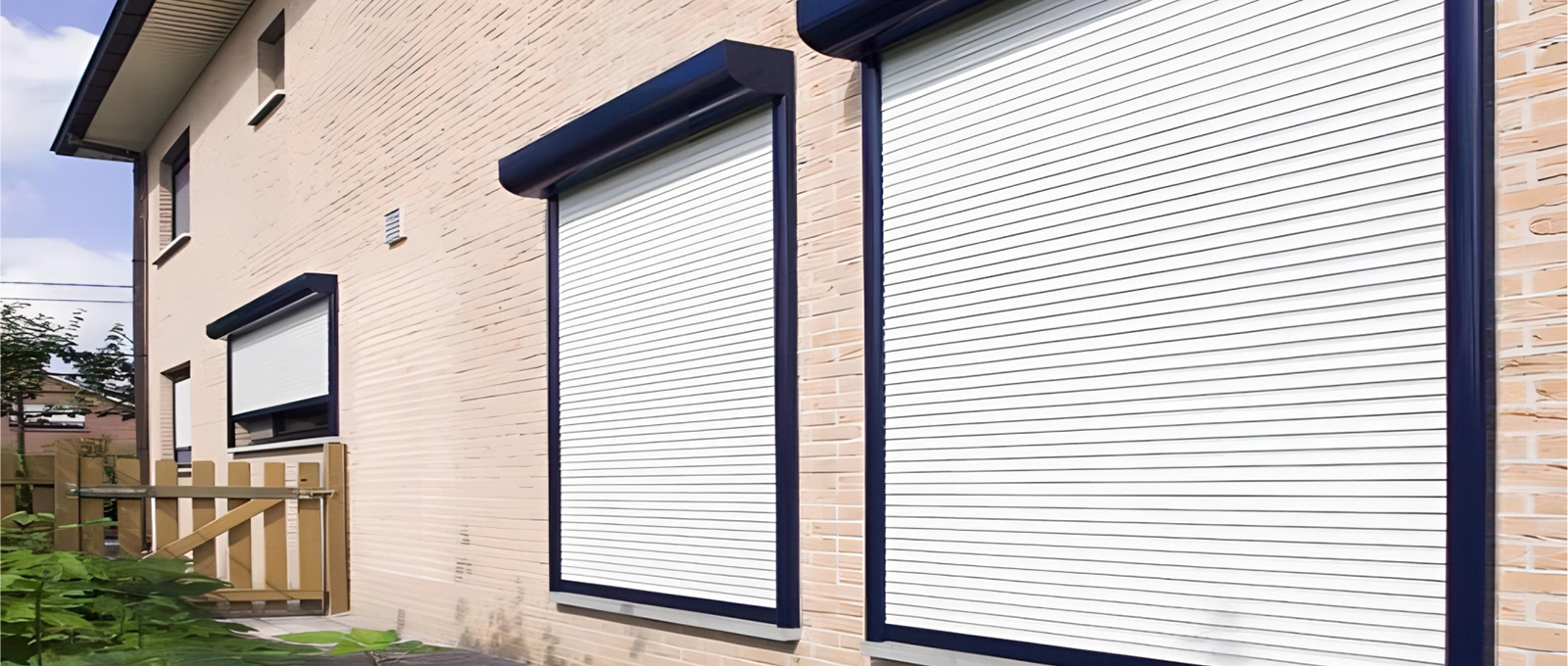

Solution of Electric Metal Roller Shutter System for Outdoor Sunshade
Electric roller shutter window has the advantages of beautiful and simple appearance, firm and durable structure, etc. It is suitable for shading office and family windows, especially for large-area glass curtain wall roller shutters. When the roller shutter fabric is put down, it can make the indoor light soft, avoid the trouble of direct sunlight, and achieve a good sunshade effect; When the roller shutter is raised, its volume is very small, so that it is not easy to be detected. Roller louvers have half-shade roller louvers, half-transparent roller louvers, and full-shade roller louvers, which can be determined according to the window location
System Features
01
Energy-saving and heat preservation: Energy-saving roller shutter windows can block outdoor sunlight in summer, isolate temperature from entering the room, and have the effect of heat insulation and sunshade. In winter, it can also ensure that the indoor temperature does not convect with the external connection, and ensure the indoor heating effect. When it is all turned on, it will not generate any heat load, and it has both lighting, ventilation and ventilation. The economic benefits are superior. According to the electricity consumption of air conditioning or heating equipment saved by the family every year, the cost can be recovered within 10 years.
02
Modern lifestyle: Roller shutter window through the opening and closing, control indoor light, prevent eyes from receiving light damage, the house of the precious home to prevent sunlight fading. Press the roller shutter window remote control to watch him move up and down freely, improve the quality of life, and enhance the interest of life.
03
Windproof and anti-theft: aluminum alloy material is durable, especially suitable for coastal areas, long sunshine, strong ultraviolet rays, high temperature, long summer, and cities accompanied by typhoons. Roller shutter windows are installed, so you can sit back and relax.

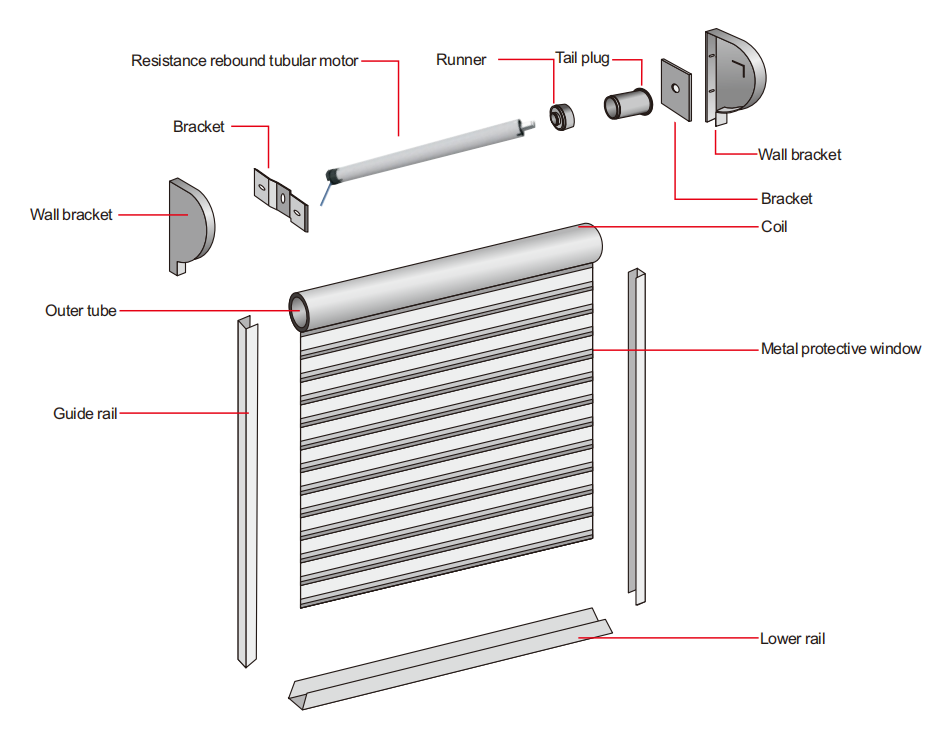

System structure decomposition diagram
YZM45 Series Parameters
| Product name | Product model | Torque | Rotational speed | Product size | Rated power | Protection class | Function Brief |
| Three-wire electronic limit motor | YZM45T-20/15-AEREZW/RF | 20Nm | 15rpm | L:531mm | 156W | IP65 | • RF remote control • Automatic travel setting in case of resistance • RS485 Features • Dry contact mode 5 options • Adjustable resistance sensitivity with 10-level • Rebound time when encountering resistance and stop when • encountering resistance are optional • Favorite position • Factory debugging anti-grabbing code function |
| Five-wire electronic limit motor | YZM45T-20/15-ACEREZW/RF | 20Nm | 15rpm | L:531mm | 156W | IP65 |
