Outdoor Shade Folding Shed System Solution

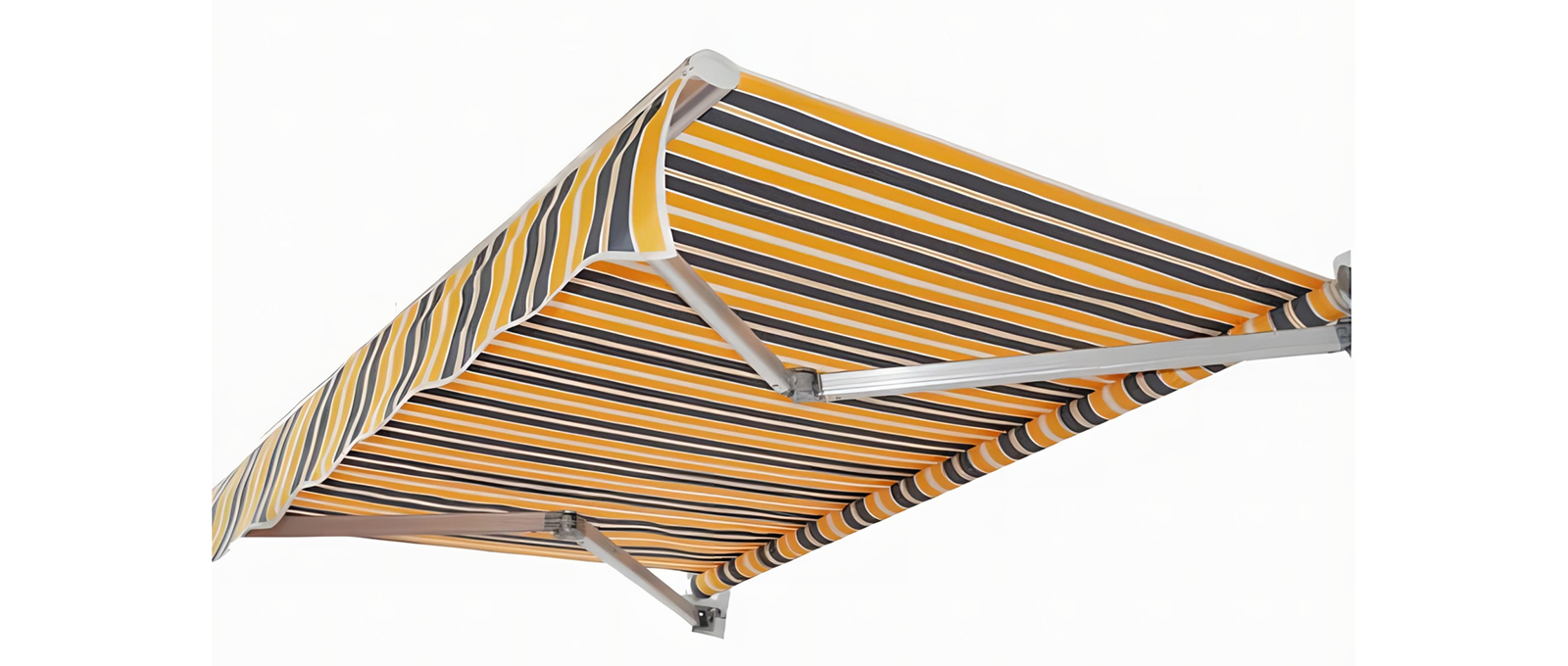

Awning: Use the motor to drive aluminum alloy coil tube rotation, so that the fabric wound on the coil tube rises and falls. At the same time, the fabric is tightened by the spring force in the arm support rod. The maximum opening angle of the system is 0 ~ 130 degrees, and it can be operated through various control methods such as switch, remote control, and wind and solar control. With comprehensive external sunshade function, it can completely block ultraviolet radiation, reduce indoor temperature, and reduce air conditioning load; Awning has energy-saving effect, which is of great significance from the perspective of energy saving and environmental protection; While blocking the hot summer, it can make the strong sunlight reflect into the room in the form of diffuse light, so that the indoor light is bright and not dazzling, and does not affect the landscape outside the window seen from the room, extending people's living space from the room to the outside, creating a new living space; The special antiultraviolet function of the sunshade cloth not only makes the human skin rabbit attacked by ultraviolet rays, but also greatly
System Features
01
Awning series products are unique in shape, beautiful and generous, and what is more outstanding is its high strength, high durability, anti-ultraviolet and temperature insulation effects. According to the JIS standard, it effectively takes into account snow resistance (875px snow load) and strong wind resistance (42m/s strong wind resistance) in terms of safety;
02
High-strength aluminum alloy material is used, and the connection between the column and the ceiling is strengthened with a built-in galvanized steel structure, which is safer and stronger. The surface of aluminum alloy is treated by powder electrostatic spraying, and the oxidation resistance is as long as 30 years;
03
It adopts polycarbonate material that resists high-strength impact, and its strength is about 200 times that of glass. The raw materials are imported from Germany and processed domestically. Anti-ultraviolet material (UV) is added through the double-sided co-extrusion process, which can effectively block more than 98% of ultraviolet rays, protect the surface paint of automobiles, and effectively control the continuous rise of temperature. At the same time, it also has flame retardant effect, and can be used normally for more than 30 years in the environment of-30 ℃ to 60 ℃ (thermal deformation occurs at 137 ℃);
04
High-strength aluminum alloy material, unique humanized design, to avoid the ceiling water falling to the ground to cause the second pollution to you. The structure is reasonable and easy to clean, and the dirt in the pipe can be conveniently

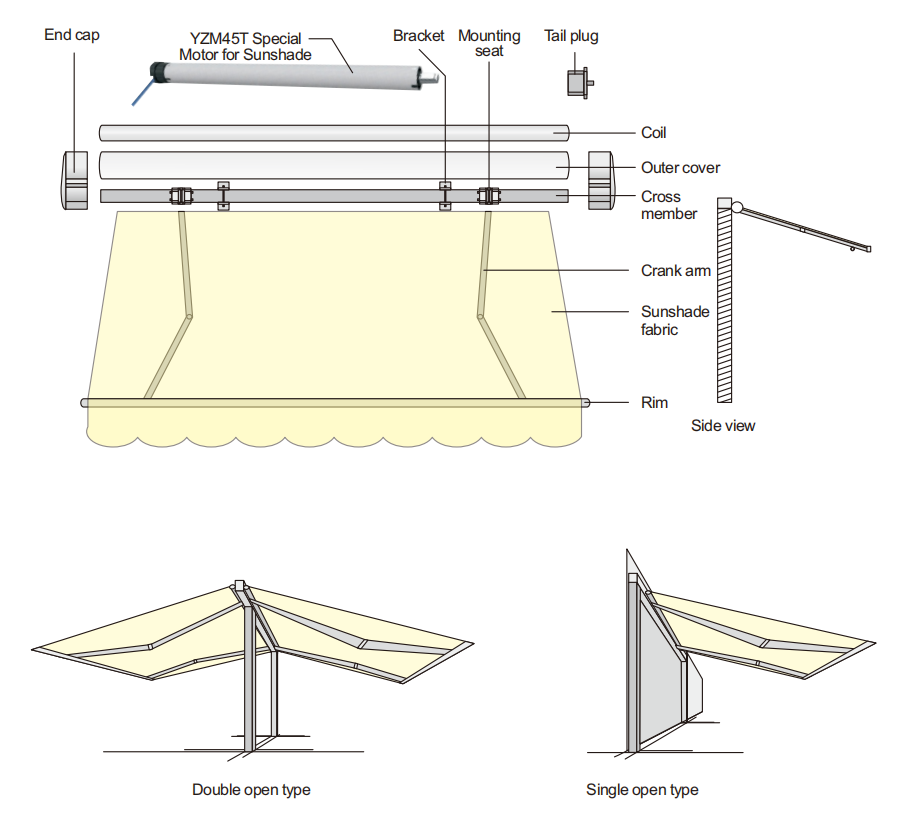

System structure decomposition diagram
YZM45 Series Parameters
| Product name | Product | Torque | Rotational speed | Product size | Rated power | Protection class | Function Brief |
| YZM45T Special Motor for Sunshade | YZM45T-50/12-AEREZWL/RF | 50Nm | 12rpm | L:531mm | 250W | IP65 | RF remote control Automatic travel setting in case of resistance RS485 Features Dry contact mode 5 options Adjustable resistance sensitivity with 10-level Rebound to the limit, the angle is adjustable Built-in 60W LED strip driver |
